Turbocharger: Troubleshooting Common Problems Associated With The Turbocharger
A turbocharger is a compressor driven by exhaust gases that forces additional air into the engine, allowing it to burn more fuel and generate more power.
Here's a concise breakdown:
A turbocharger is a device used in internal combustion engines to increase their power output by forcing more air into the combustion chamber.
Can a Hybrid Car Be Turbo Charged or Super Charged?
- Usage: Turbochargers are commonly used in automotive, marine, and industrial applications, particularly in high-performance engines and diesel engines.
- Purpose: They enable smaller engines to produce more power while maintaining fuel efficiency, enhancing overall engine performance.

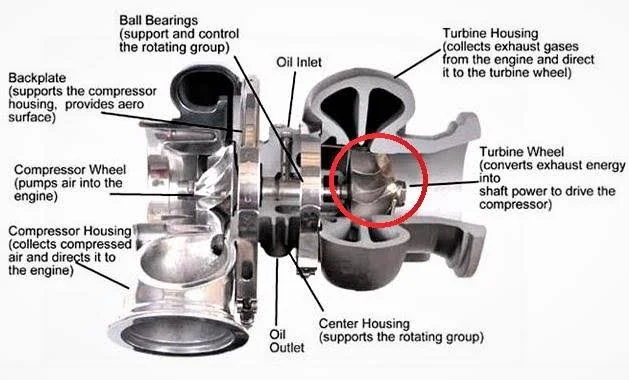

- Operation: Turbochargers consist of two main components: a turbine and a compressor. The exhaust gases pass through the turbine, spinning it, which in turn drives the compressor, forcing more air into the engine.
Turbocharged Engine Maintenance: Dos and Don’ts

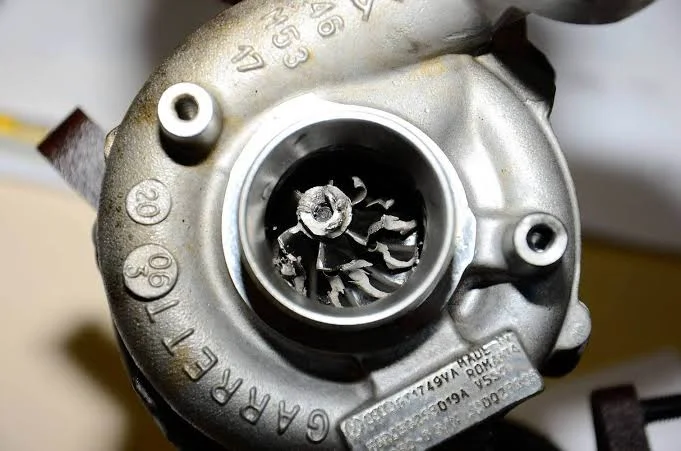

Common Problems Associated With A Turbocharger:
1. Turbo lag: Delayed response when accelerating due to the time required for the turbine to spin up.
2. Overboost/underboost: Inconsistent boost pressure, leading to reduced power or excessive stress on the engine.
3. Oil leaks: Oil supply or drainage issues that can result in insufficient lubrication or excessive oil consumption.
4. Compressor surge: Occurs when the pressure in the intake system becomes too high, leading to inefficient operation and potential damage.
5. Shaft play/wear: Excessive movement or wear of the turbocharger's shaft, often resulting in increased noise and reduced performance.
Troubleshooting:
- Turbo lag can be reduced by optimizing the engine's tuning or upgrading to a larger turbocharger.
- Overboost/underboost issues may require inspecting and repairing or replacing boost pressure control systems, such as wastegates or boost sensors.
- Oil leaks can be addressed by checking and repairing gaskets, oil supply lines, or drainage systems.
- Compressor surge can be mitigated by installing a blow-off valve or anti-surge housing.
- Shaft play or wear may necessitate turbocharger rebuilding or replacement, ensuring proper lubrication and alignment.
