U0010 Medium Speed CAN Communication Bus

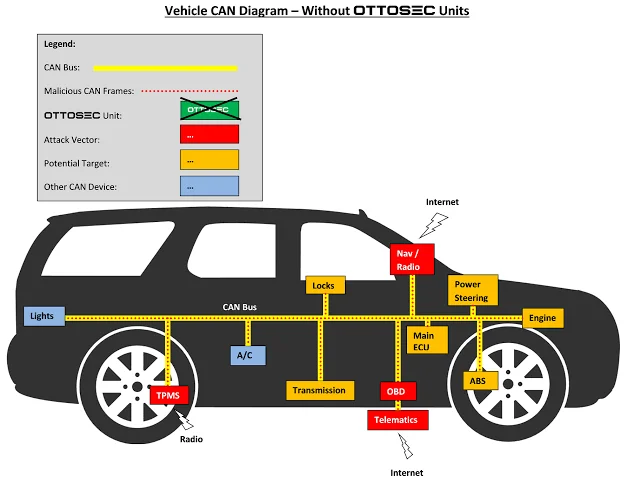

DTC code U0010 is a diagnostic trouble code (DTC) that indicates a problem with the medium speed controller area network (CAN) communication bus. The CAN bus is a network that connects various electronic control units (ECUs) in a vehicle.

The medium speed CAN bus is used to communicate with ECUs that require a moderate data rate, such as the engine control module (ECM), transmission control module (TCM), and anti-lock braking system (ABS) control module.

What are the causes of DTC code U0010?

There are a number of possible causes of DTC code U0010, including:

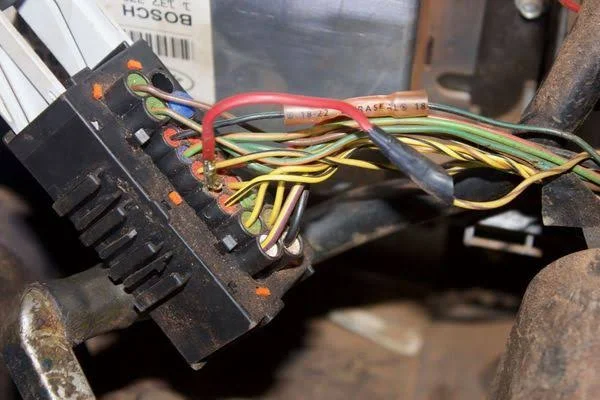

1. Open or short circuit in the medium speed CAN bus wiring. This can be caused by a damaged or corroded wire connector, or by a wire that has been broken or crushed.
2. Faulty CAN bus module. The CAN bus module is responsible for routing and processing CAN bus messages. If the CAN bus module is faulty, it can cause DTC code U0010 to set.
3. Faulty ECU. If one of the ECUs on the medium speed CAN bus is faulty, it can cause DTC code U0010 to set.
4. Software issue. In some cases, a software issue in the ECM, TCM, or ABS control module can cause DTC code U0010 to set.

What are the symptoms of DTC code U0010?

The symptoms of DTC code U0010 can vary depending on the specific cause of the problem. However, some common symptoms include:

• Illuminated check engine light
• Poor engine performance
• Transmission problems
• ABS problems
• Other electrical problems i.e Inoperative: instrument panel, headlights or taillights, inoperative power windows or locks, radio or climate control system, airbags, fuel pump and starter motor.

How to diagnose DTC code U0010

To diagnose DTC code U0010, a technician will use a scan tool to retrieve the DTC codes from the vehicle's computer. The technician will then inspect the medium speed CAN bus wiring for any damage or corrosion. The technician will also test the CAN bus module and the ECUs on the medium speed CAN bus to see if they are functioning properly.

How to repair DTC code U0010

The repair for DTC code U0010 will vary depending on the specific cause of the problem. If the medium speed CAN bus wiring is damaged, the damaged wire or connector will need to be repaired or replaced. If the CAN bus module is faulty, it will need to be replaced. If one of the ECUs on the medium speed CAN bus is faulty, it will need to be replaced. In some cases, a software update may be necessary to fix the problem.

How to prevent DTC code U0010

There is no surefire way to prevent DTC code U0010, but there are a few things you can do to reduce the risk:

• Keep the vehicle's electrical system clean and free of corrosion. This will help to prevent shorts and open circuits in the wiring.
• Have the vehicle serviced regularly. This will give a technician a chance to identify and repair any potential problems before they cause DTC code U0010 to set.
• Avoid driving through deep water or puddles. This can damage the electrical system and cause DTC code U0010 to set.

If you are experiencing any of the symptoms listed above, it is important to have your vehicle diagnosed by a qualified automotive technician as soon as possible. DTC code U0010 can cause a variety of problems, including poor engine performance, transmission problems, and ABS problems. By having the problem diagnosed and repaired early, you can save yourself time and money in the long run.

Pro Tips

1. When diagnosing DTC code U0010, it is important to start by checking the medium speed CAN bus wiring for any damage or corrosion. This is the most common cause of the problem.
2. If the wiring is in good condition, the next step is to test the CAN bus module and the ECUs on the medium speed CAN bus. This can be done using a scan tool.
3. If the CAN bus module or one of the ECUs is found to be faulty, it will need to be replaced.
4. In some cases, a software update may be necessary to fix the problem. This can be done by a qualified automotive technician.
