U0011 Medium Speed CAN Communication Bus Performance

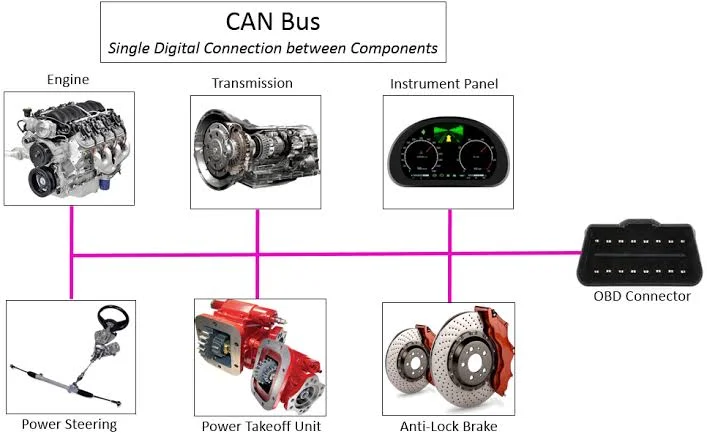

DTC error code U0011 is a generic code that indicates a problem with the medium speed controller area network (CAN) communication bus performance. The CAN bus is a vehicle network that connects various devices and modules without a host computer.
The CAN bus uses two wires, called CAN high and CAN low, to transmit data bits by creating a voltage differential between them. The CAN bus operates at different speeds, depending on the type and function of the devices. The medium speed CAN bus is used for devices that are not critical for vehicle operation, such as the radio, climate control, instrument cluster, etc.
What are the Possible Causes of U0011?
There are several possible causes of U0011, such as:
- Faulty or damaged medium speed CAN bus devices or modules
- Faulty or damaged wiring harness or connectors
- Shorted or open circuit
- Poor electrical connection
- Interference from other sources
What are the Symptoms of U0011?
Some of the symptoms that may indicate U0011 are:
- Check engine light on
- No communication with some or all of the medium speed CAN bus devices or modules
- Loss of functionality of some or all of the medium speed CAN bus devices or modules
- Erratic or incorrect data displayed on the instrument cluster
How to Fix U0011?
To fix U0011, you need to perform some diagnostic steps, such as:
- Scan the vehicle with a code reader and record the freeze frame data
- Clear the codes and test drive the vehicle to see if they reappear
- Visually inspect the medium speed CAN bus devices, wiring harness, and connectors for any damage or corrosion
- Check for continuity and resistance in the medium speed CAN bus circuit using a multimeter
- Check for voltage and ground in the medium speed CAN bus circuit using a test light
- Replace or repair any faulty components as needed
- Re-scan the vehicle and verify if the codes are cleared
Conclusion
U0011 is a DTC error code that indicates a problem with the medium speed CAN communication bus performance. This code can affect the functionality and communication of some or all of the devices connected to the medium speed CAN bus, such as the radio, climate control, instrument cluster, etc. To fix this code, you need to diagnose and repair any faulty components in the medium speed CAN bus circuit. By doing so, you can restore your vehicle’s network and performance.
