Brake Boosters: Enhancing Braking Power and Reducing Pedal Effort

Have you ever wondered how your vehicle can stop quickly and smoothly with just a light touch of the brake pedal? The answer is the brake booster, a device that amplifies the force you apply to the pedal and transfers it to the brake master cylinder, which then activates the brakes.

The brake booster is a vital component of your vehicle’s braking system, as it enhances the braking power and reduces the pedal effort required to stop your vehicle safely and effectively.

How Brake Boosters Work: A Comprehensive Explanation

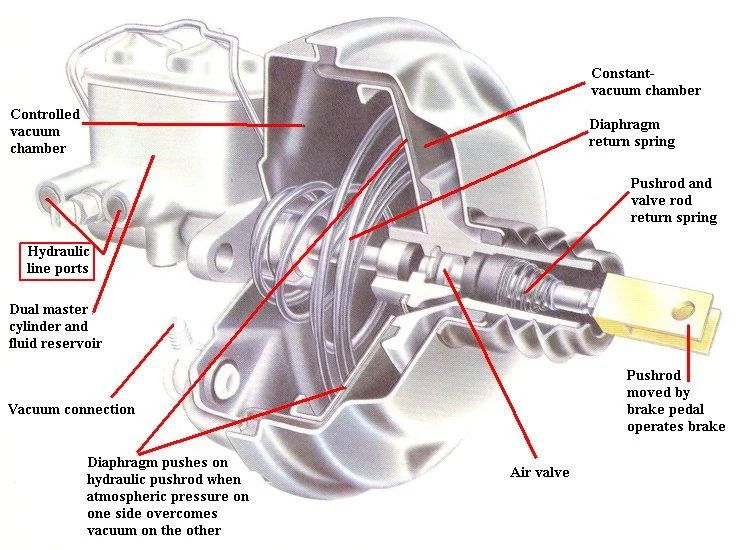

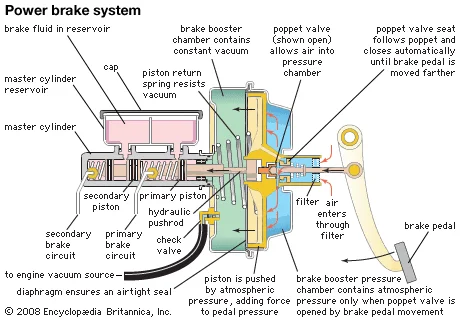

The brake booster works by using a difference in pressure between two chambers, one connected to the engine vacuum and the other to the atmosphere. When you press the brake pedal, a valve opens and allows air to enter the chamber connected to the engine vacuum, creating a low-pressure area. This low pressure pushes a diaphragm that moves a pushrod that connects to the brake master cylinder. The pushrod then applies hydraulic pressure to the brakes, which slows down or stops the vehicle. When you release the brake pedal, the valve closes and restores the pressure balance between the two chambers, allowing the diaphragm and the pushrod to return to their original positions.

Types of Brake Boosters: Vacuum, Hydraulic, and Electric

There are three main types of brake boosters: vacuum, hydraulic, and electric.

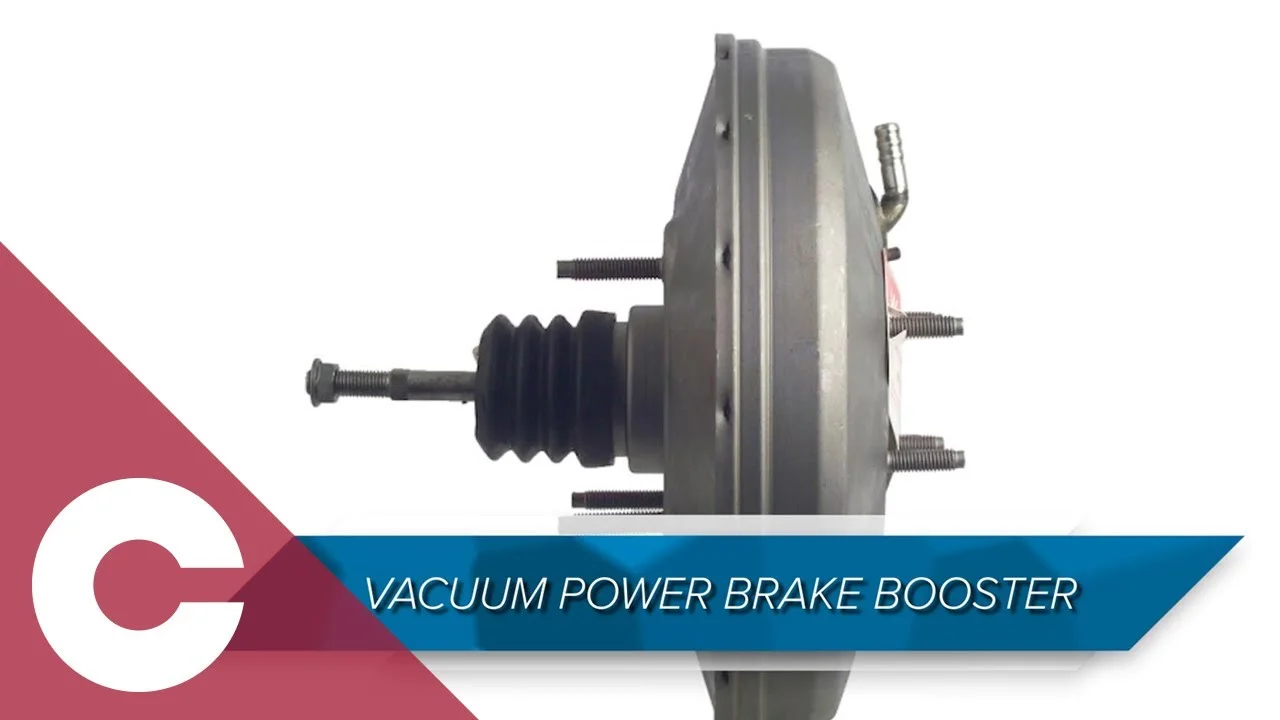

1. Vacuum brake boosters are the most common type, as they use the engine vacuum as a source of pressure difference. However, they are not suitable for vehicles with turbocharged or supercharged engines, as they produce less vacuum than normal engines.
2. Hydraulic brake boosters use hydraulic pressure from the power steering pump or another source to create the pressure difference. They are more powerful than vacuum boosters, but they are more complex and expensive.

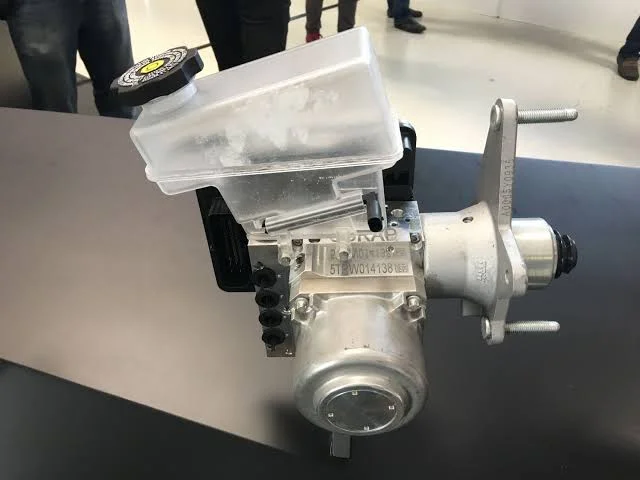

3. Electric brake boosters use an electric motor and a pump to create the pressure difference. They are more efficient and responsive than vacuum or hydraulic boosters, but they require more electrical power and are also more costly.

The Benefits of Using a Brake Booster

The main benefit of using a brake booster is that it enhances the braking power of your vehicle by multiplying the force you apply to the pedal. This means that you can stop your vehicle faster and more safely, especially in emergency situations. Another benefit of using a brake booster is that it reduces the pedal effort required to activate the brakes. This means that you can brake more comfortably and easily, without straining your leg muscles or causing fatigue.

Brake Boosters and Braking Performance:

The performance of your brakes depends largely on the condition and functionality of your brake booster. A properly functioning brake booster will provide you with optimal braking power and pedal effort, ensuring a smooth and safe driving experience. However, if your brake booster is faulty or malfunctioning, it will affect your braking performance negatively, compromising your safety and comfort.

Identifying a Faulty Brake Booster: Signs and Symptoms

How can you tell if your brake booster is faulty or malfunctioning? There are some signs and symptoms that can indicate a problem with your brake booster, such as:

• A hard or stiff brake pedal that requires more force than usual to depress
• A hissing or whistling noise coming from the brake pedal area when you press or release it
• A spongy or soft brake pedal that sinks to the floor when you apply pressure
• A delayed or reduced braking response when you press the pedal
• An increased stopping distance or difficulty in stopping your vehicle
• A warning light on your dashboard indicating a problem with your brakes

If you notice any of these signs or symptoms, you should have your brake booster checked and repaired by a professional as soon as possible.

Common Brake Booster Problems: Causes and Solutions

What are some common problems that can affect your brake booster? Here are some examples:

1. A leak in the vacuum hose or valve that connects the engine vacuum to the brake booster. This can cause a loss of vacuum pressure in the booster, resulting in a hard or stiff pedal. To fix this problem, you need to locate and seal or replace the leaky hose or valve.
2. A tear or hole in the diaphragm that separates the two chambers in the booster. This can cause air to enter both chambers, equalizing the pressure and reducing the braking force. To fix this problem, you need to replace the damaged diaphragm.
3. A failure or malfunction of the electric motor or pump in an electric brake booster. This can cause a loss of electrical power or pressure in the booster, resulting in a soft or spongy pedal. To fix this problem, you need to repair or replace the faulty motor or pump.

Brake Booster Maintenance Tips: Ensuring Optimal Performance

How can you maintain your brake booster and ensure its optimal performance? Here are some tips:

• Check the vacuum hose and valve regularly for any signs of damage, wear, or leakage. Replace them if necessary.
• Check the brake fluid level and quality regularly and top it up or change it if needed.
• Check the brake pads and rotors regularly for any signs of wear or damage. Replace them if necessary.
• Avoid driving with your foot resting on the brake pedal, as this can cause the brake booster to overheat and wear out faster.

Have your brake booster inspected and serviced by a professional at least once a year or according to your vehicle’s manual.

Brake Booster Replacement Cost: What to Expect

If your brake booster is beyond repair, you may need to replace it with a new one. The cost of replacing a brake booster depends on several factors, such as:

• The type and model of your vehicle
• The type and brand of the brake booster
• The labor cost and time required for the installation
• The availability and location of the parts

The average cost of replacing a brake booster ranges from $300 to $800, including parts and labor. However, this may vary depending on your specific situation.

The Importance of a Properly Functioning Brake Booster: Safety First

A properly functioning brake booster is essential for your safety and comfort on the road. It enhances your braking power and reduces your pedal effort, allowing you to stop your vehicle quickly and smoothly. It also prevents your brakes from overheating and wearing out prematurely, extending their lifespan and performance. A faulty or malfunctioning brake booster, on the other hand, can compromise your safety and comfort, as it can cause your brakes to fail or perform poorly. Therefore, it is important to keep your brake booster in good condition and repair or replace it if needed.

Tips for Ensuring Optimal Brake Booster Performance: Maximizing Braking Efficiency

To ensure optimal brake booster performance and maximize braking efficiency, you should follow these tips:

1. Use the right type and amount of brake fluid for your vehicle
2. Bleed your brakes regularly to remove any air bubbles from the system
3. Adjust your brakes properly to ensure even pressure distribution
4. Drive carefully and avoid sudden or hard braking
5. Follow the traffic rules and regulations regarding braking

Conclusion

The brake booster is a vital component of your vehicle’s braking system that enhances the braking power and reduces the pedal effort. It works by using a difference in pressure between two chambers to move a diaphragm and a pushrod that activate the brakes. There are three main types of brake boosters: vacuum, hydraulic, and electric. A properly functioning brake booster will provide you with optimal braking performance and comfort, while a faulty or malfunctioning one will affect your braking performance negatively. Therefore, it is important to maintain your brake booster and repair or replace it if needed. By following these tips, you can ensure optimal brake booster performance and maximize braking efficiency.
