Power Windows: Common Problems and Solutions

Do you enjoy the convenience of opening and closing your car windows with just a push of a button? If so, you have power windows to thank for that. Power windows are electrically operated windows that allow you to control the amount of air and light entering your car.

What are power windows?

Power windows are windows that can be raised or lowered by using a switch or a button. Unlike manual windows, which require you to crank a handle or pull a lever, power windows use an electric motor and a mechanism to move the window glass up and down.

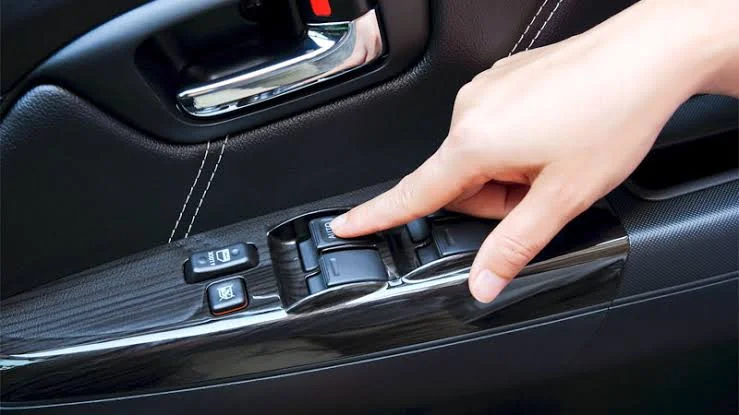

How do power windows work?

Power windows work by converting electrical energy into mechanical energy. When you press the power window switch, it sends an electrical signal to the power window motor, which is located inside the door panel. The motor then rotates a gear or a cable that is attached to the power window regulator, which is a device that guides the movement of the window glass. The regulator pushes or pulls the window glass along the power window rails, which are metal tracks that hold the glass in place.

The benefits of power windows

Power windows have many benefits over manual windows, such as:

1. Convenience: Power windows allow you to open and close your windows with ease and speed. You don’t have to reach out or lean over to operate your windows manually. You can also control all the windows from the driver’s seat, which is handy when you have passengers or children in the back seat.
2. Safety: Power windows can help you avoid accidents and injuries by allowing you to keep your hands on the steering wheel and your eyes on the road. You can also lock the power window switches to prevent children or pets from opening the windows accidentally or intentionally.
3. Comfort: Power windows can help you adjust the temperature and ventilation inside your car according to your preference. You can lower or raise your windows to let in fresh air or block out noise and dust. You can also use your power windows in conjunction with your air conditioning or heating system to create a comfortable environment.

Types of power window systems

There are three main types of power window systems: cable-operated, gear-operated, and scissor-lift. Each type has its own advantages and disadvantages, but they all serve the same function: to move the window glass up and down.

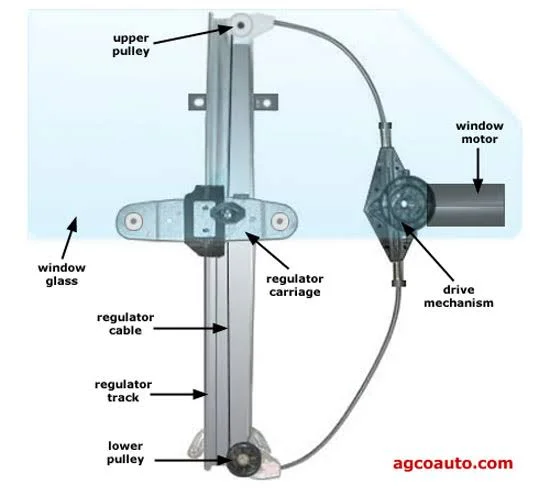

1. Cable-operated power windows

Cable-operated power windows use a thin metal cable that is wound around a spool in the power window motor. When the motor rotates, it pulls or releases the cable, which is connected to a plastic slider that moves along the power window rails. The slider pushes or pulls the window glass along with it.

Cable-operated power windows are simple, cheap, and easy to install, but they have some drawbacks. They are prone to wear and tear, as the cable can stretch, fray, or snap over time. They are also noisy, as the cable can rub against the spool or the rails.

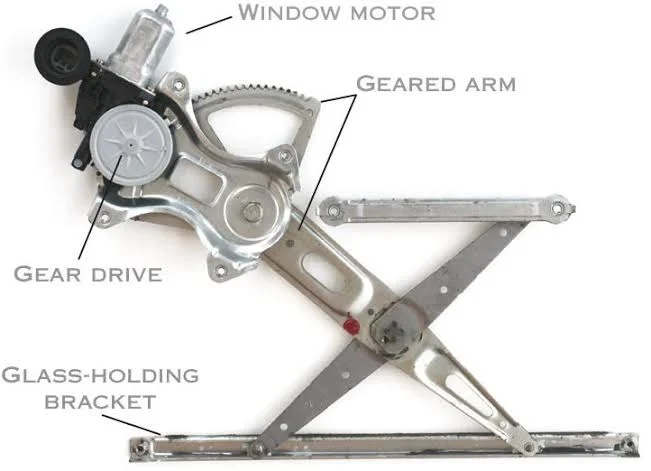

2. Gear-operated power windows

Gear-operated power windows use a worm gear that is driven by the power window motor. The worm gear meshes with a spur gear that is attached to a metal arm that moves along the power window rails. The arm pushes or pulls the window glass along with it.

Gear-operated power windows are more durable, reliable, and quiet than cable-operated power windows, but they are also more expensive and complex. They require more space and precision to install, and they may need lubrication to prevent rust and friction.

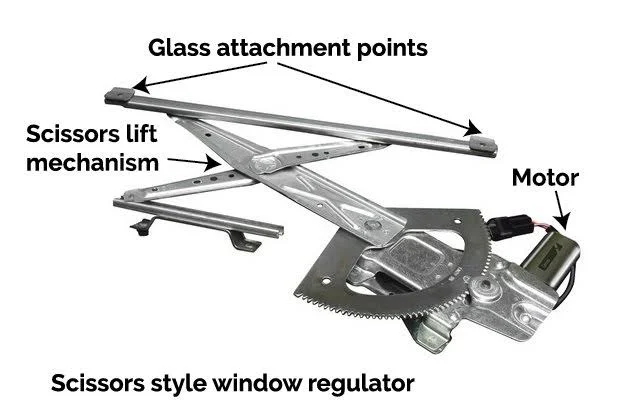

3. Scissor-lift power windows

Scissor-lift power windows use a pair of metal arms that are crossed like scissors and connected by a pivot point. The power window motor rotates a threaded rod that moves the pivot point up or down, which causes the arms to extend or retract. The arms push or pull the window glass along with them.

Scissor-lift power windows are the oldest and most common type of power window system. They are strong, stable, and easy to adjust, but they also have some disadvantages. They are bulky, heavy, and noisy, and they may interfere with the door speakers or the window seals.

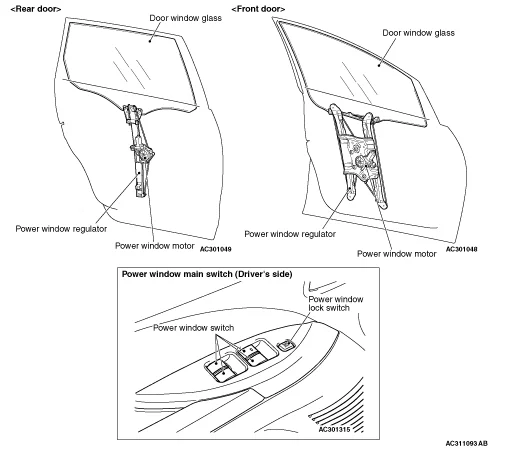

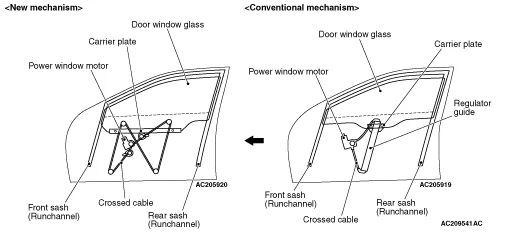

Components of a power window system

A power window system consists of several components that work together to move the window glass up and down. These components include:

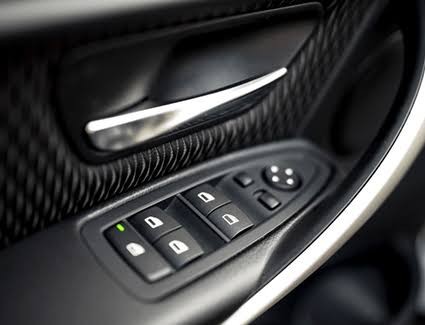

1. Power window switch: The power window switch is the device that you use to control your power windows. It is usually located on the door panel or the center console of your car. The switch may have one or more buttons that correspond to each window, as well as a lock button that disables the other switches. The switch sends an electrical signal to the power window motor when you press it.
2. Power window motor: The power window motor is the device that converts electrical energy into mechanical energy. It is usually located inside the door panel, behind the power window switch. The motor receives an electrical signal from the switch and rotates a gear or a cable that is attached to the power window regulator.
3. Power window regulator: The power window regulator is the device that guides the movement of the window glass. It is usually located inside the door panel, below the power window motor. The regulator consists of a metal frame that holds a gear, a cable, or a pair of arms that are connected to the window glass. The regulator pushes or pulls the window glass along the power window rails.
4. Power window rails: The power window rails are metal tracks that hold the window glass in place. They are usually located inside the door panel, along the edges of the door frame. The rails have grooves or slots that allow the window glass to slide up and down smoothly and securely.
5. Power window glass: The power window glass is the transparent material that forms your car windows. It is usually made of tempered glass, which is a type of glass that is specially treated to make it stronger and safer. The glass is attached to the power window regulator by clips or bolts.

Common power window problems

Power windows are convenient and useful, but they can also malfunction or break down over time. Some of the common power window problems include:

• Power window switch failure: If your power window switch stops working or works intermittently, it may be due to a faulty switch, a loose connection, a blown fuse, or a short circuit. You can check for these problems by using a test light or a multimeter to test the switch and its wiring.
• Power window motor failure: If your power window motor makes no sound or makes a grinding noise when you press the switch, it may be due to a worn-out motor, a faulty relay, a bad ground, or a broken gear or cable. You can check for these problems by using a test light or a multimeter to test the motor and its wiring.
• Power window regulator failure: If your power window moves slowly, unevenly, or not at all when you press the switch, it may be due to a damaged regulator, a bent rail, a jammed slider, or a broken gear or cable. You can check for these problems by removing the door panel and inspecting the regulator and its components.
• Power window glass breakage: If your power window glass cracks, shatters, or falls off when you press the switch, it may be due to an impact, vandalism, theft, weathering, or improper installation. You can check for these problems by examining the glass and its attachments.

How to troubleshoot and fix power window problems

If you encounter any of these problems with your power windows, you can try to troubleshoot and fix them yourself or take your car to a mechanic. Here are some steps to follow:

Diagnosing the problem

Before you attempt to fix your power windows, you need to diagnose the problem and identify its cause. You can do this by following these steps:

• Check your owner’s manual for any information about your power windows and their components.
• Locate your fuse box and check for any blown fuses that may affect your power windows. Replace any faulty fuses with new ones of the same rating.
• Locate your power window switches and check for any signs of damage or wear. Clean any dirt or debris from around the switches and test them for continuity and voltage using a test light or a multimeter.
• Locate your power window motors and check for any signs of damage or wear. Listen for any sounds or vibrations from the motors when you press the switches. Test them for current and resistance using a test light or a multimeter.
• Locate your power window regulators and check for any signs of damage or wear. Look for any bends, cracks, or breaks in the metal frame, the gear, the cable, or the arms. Check for any loose or missing screws, bolts, or clips. Test them for smoothness and alignment by moving them manually.
• Locate your power window rails and check for any signs of damage or wear. Look for any dents, scratches, or rust on the metal tracks. Check for any dirt, debris, or grease that may obstruct the movement of the window glass. Lubricate them with silicone spray or white lithium grease if needed.
• Locate your power window glass and check for any signs of damage or wear. Look for any cracks, chips, or shatters on the glass surface. Check for any gaps, leaks, or tears on the window seals. Check for any loose or broken attachments to the regulator.

Replacing the power window switch

If you have determined that your power window switch is faulty, you can replace it yourself by following these steps:

• Disconnect the negative battery cable for safety.
• Pry off the power window switch panel from the door panel or the center console using a flathead screwdriver or a trim removal tool.
• Disconnect the electrical connector from the back of the switch by pressing the tab and pulling it out.
• Remove any screws or clips that secure the switch to the panel and pull out the switch.
• Compare the new switch with the old one and make sure they are identical.
• Install the new switch in reverse order of removal and reconnect the electrical connector.
• Reattach the power window switch panel to the door panel or the center console and snap it into place.
• Reconnect the battery cable and test your power windows.

Replacing the power window motor

If you have determined that your power window motor is faulty, you can replace it yourself by following these steps:

• Disconnect the negative battery cable for safety.
• Remove the door panel by unscrewing or unclipping any fasteners and prying it off with a flathead screwdriver or a trim removal tool.
• Peel off the plastic sheeting or foam insulation from behind the door panel to expose the power window motor and its wiring.
• Disconnect the electrical connector from the motor by pressing the tab and pulling it out.
• Remove any screws or bolts that secure the motor to the door frame and pull out the motor.
• Compare the new motor with the old one and make sure they are identical.
• Install the new motor in reverse order of removal and reconnect the electrical connector.
• Reattach the plastic sheeting or foam insulation to the door panel and secure it with tape or glue.
• Reinstall the door panel by aligning it with the door frame and pushing it into place. Tighten or clip any fasteners that hold the panel.
• Reconnect the battery cable and test your power windows.

Replacing the power window regulator

If you have determined that your power window regulator is faulty, you can replace it yourself by following these steps:

• Disconnect the negative battery cable for safety.
• Remove the door panel and the plastic sheeting or foam insulation as described above.
• Lower the window glass until you can see the bolts or clips that attach it to the regulator. You may need to use a jumper wire to bypass the switch and motor if they are not working.
• Remove the bolts or clips that secure the window glass to the regulator and carefully lift the glass out of the door. You may need to use a suction cup or a helper to hold the glass while you remove it.
• Place the window glass on a soft surface or wrap it in a blanket to protect it from scratches or breakage.
• Disconnect the electrical connector from the motor if it is attached to the regulator.
• Remove any screws or bolts that secure the regulator to the door frame and pull out the regulator.
• Compare the new regulator with the old one and make sure they are identical.
• Install the new regulator in reverse order of removal and reconnect the electrical connector if it is attached to the regulator.
• Reattach the window glass to the new regulator by aligning the holes and inserting the bolts or clips. Tighten them securely and make sure the glass is stable and level.
• Reattach the plastic sheeting or foam insulation to the door panel and secure it with tape or glue.
• Reinstall the door panel by aligning it with the door frame and pushing it into place. Tighten or clip any fasteners that hold the panel.
• Reconnect the battery cable and test your power windows.

Repairing or replacing the power window glass

If you have determined that your power window glass is broken, you can repair or replace it yourself by following these steps:

• Disconnect the negative battery cable for safety.
• Remove the door panel, the plastic sheeting or foam insulation, and the window glass as described above.
• If the glass is cracked or chipped, you may be able to repair it using a windshield repair kit, which contains a resin and a syringe that can fill and seal the cracks or chips. Follow the instructions on the kit carefully and apply the resin to the damaged area. Use a razor blade to scrape off any excess resin and let it dry completely.
• If the glass is shattered or missing, you will need to replace it with a new one. You can buy a replacement glass from an auto parts store or a junkyard, or order one online. Make sure the new glass matches the size, shape, and tint of your old one.
• Install the new glass in reverse order of removal and reattach it to the regulator by aligning the holes and inserting the bolts or clips. Tighten them securely and make sure the glass is stable and level.
• Reattach the plastic sheeting or foam insulation to the door panel and secure it with tape or glue.
• Reinstall the door panel by aligning it with the door frame and pushing it into place. Tighten or clip any fasteners that hold the panel.
• Reconnect the battery cable and test your power windows.

Tips for maintaining your power window system

Your power window system can last for a long time if you take good care of it and prevent any problems from occurring. Here are some tips for maintaining your power window system:

1. Lubricating the power window rails: The power window rails are metal tracks that hold the window glass in place. They can get dirty, rusty, or dry over time, which can affect their smoothness and alignment. You can lubricate them with silicone spray or white lithium grease every few months or whenever you notice any squeaking or sticking noises from your windows.
2. Avoiding overloading the power window system: The power window system uses an electric motor and a mechanism to move the window glass up and down. They can get overheated, worn out, or damaged if you use them too frequently or forcefully. You can avoid overloading them by opening and closing your windows gently and gradually, and not holding down the switch for too long.
3. Regularly cleaning the power window switches: The power window switches are devices that you use to control your power windows. They can get dirty, sticky, or corroded over time, which can affect their functionality and appearance. You can clean them with a soft cloth and a mild cleaner every few weeks or whenever you notice any dirt or stains on them.
