DTC P0101 is a generic code that indicates a problem with the mass air flow (MAF) sensor performance. The MAF sensor is a device that measures the amount of air entering the engine. It sends a signal to the engine control module (ECM), which then adjusts the fuel injection and ignition timing accordingly. The ECM monitors the MAF sensor signal and compares it with the expected value based on the engine speed, load, and temperature. If the MAF sensor signal is too high or too low, the ECM will set the DTC P0101 code and turn on the check engine light.


What are the causes of DTC P0101?

There are several possible causes of DTC P0101, such as:

  • Dirty or damaged MAF sensor: The MAF sensor can get contaminated by dirt, dust, oil, or moisture, which can affect its accuracy and performance. The MAF sensor can also get damaged by physical impact, heat, or electrical issues.
  • Faulty MAF sensor wiring: The MAF sensor wiring can get corroded, loose, broken, or shorted, which can interrupt the communication between the MAF sensor and the ECM.

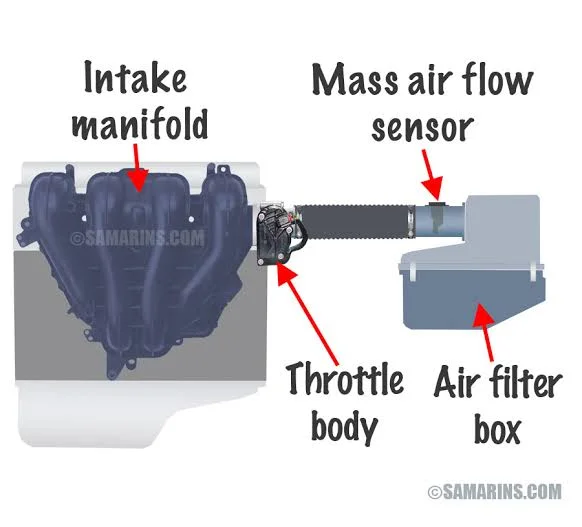

  • Air leaks in the intake system: The intake system is the path that the air takes from the air filter to the engine. If there are any cracks, holes, or loose connections in the intake system, the air can leak out or in, which can alter the MAF sensor reading and cause a false DTC P0101 code.
  • Engine vacuum leaks: The engine vacuum is the pressure difference between the atmospheric pressure and the pressure inside the engine. The engine vacuum is used to operate various components, such as the brake booster, the evaporative emission control system, and the intake manifold runner control. If there are any leaks in the engine vacuum system, the air-fuel ratio can be affected, which can also trigger a DTC P0101 code.
  • Faulty engine control module (ECM): The ECM is the computer that controls the engine functions. If the ECM is malfunctioning, it may not be able to process the MAF sensor signal correctly or send the right commands to the engine components, which can result in a DTC P0101 code.


What are the symptoms of DTC P0101?

Some of the common symptoms of DTC P0101 are:

  • Engine hesitation: The engine may hesitate or stumble when you accelerate or decelerate, as the ECM is not able to adjust the fuel and spark delivery properly.
  • Rough idle: The engine may idle roughly or irregularly, as the air-fuel mixture is not optimal for the engine speed and load.
  • Poor fuel economy: The engine may consume more fuel than normal, as the ECM is not able to optimize the fuel efficiency based on the MAF sensor input.
  • Check engine light on: The check engine light will illuminate on your dashboard, indicating that there is a problem with the engine system.

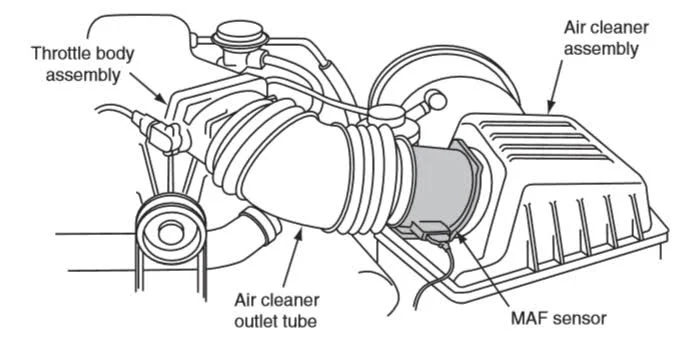

How to diagnose DTC P0101?

To diagnose DTC P0101, you will need a scan tool to retrieve the code and other related codes from the ECM. You will also need to perform some tests and inspections to pinpoint the exact cause of the problem. Here are some steps to follow:

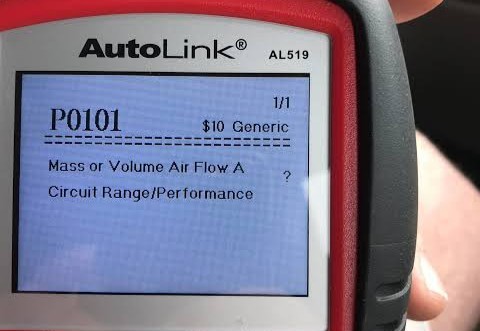

  • Scan tool: Connect the scan tool to the OBD-II port under the dashboard and turn on the ignition. Read the codes and note down the freeze frame data, which shows the engine conditions when the code was set. Clear the codes and test drive the vehicle to see if the code returns.
  • Visual inspection: Inspect the MAF sensor and wiring for any signs of damage, corrosion, or loose connections. Check the air filter and the intake system for any dirt, debris, or air leaks. Check the engine vacuum system for any cracks, holes, or loose hoses.
  • Pressure testing: Use a vacuum gauge to measure the engine vacuum at idle and at different engine speeds. Compare the readings with the specifications for your vehicle. Use a smoke machine to inject smoke into the intake system and look for any leaks.

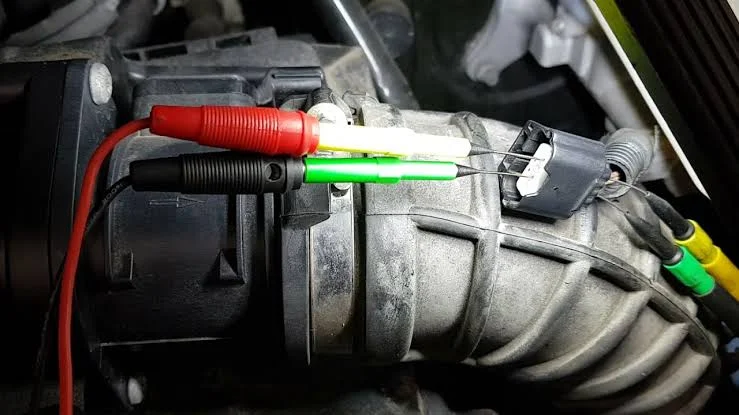

  • Testing of the ECM: Use a multimeter to check the voltage and resistance of the MAF sensor circuit and the ECM circuit. Compare the readings with the specifications for your vehicle. Use a scan tool to monitor the live data of the MAF sensor and the ECM and look for any discrepancies or abnormalities.


How to fix DTC P0101?

Depending on the diagnosis, you may need to perform one or more of the following repairs to fix DTC P0101:

  1. Clean or replace the MAF sensor: If the MAF sensor is dirty, you can use a MAF sensor cleaner spray to clean it. Follow the instructions on the product label and make sure the MAF sensor is dry before reinstalling it. If the MAF sensor is damaged, you will need to replace it with a new one.
  2. Repair or replace the MAF sensor wiring: If the MAF sensor wiring is corroded, loose, broken, or shorted, you will need to repair or replace it. Make sure the wiring is properly connected and secured. Use electrical tape or heat shrink tubing to insulate the wires and prevent further damage.
  3. Repair or replace the air leaks in the intake system: If there are any air leaks in the intake system, you will need to repair or replace the affected parts. Use a sealant or a gasket to seal the cracks or holes. Tighten or replace the clamps or bolts that hold the intake system together.
  4. Repair or replace the engine vacuum leaks: If there are any engine vacuum leaks, you will need to repair or replace the leaking components. Use a sealant or a gasket to seal the cracks or holes. Tighten or replace the hoses or fittings that connect the engine vacuum system.
  5. Repair or replace the ECM: If the ECM is faulty, you will need to repair or replace it. You may need to reprogram the ECM with the latest software update. You may also need to reset the ECM by disconnecting the battery for a few minutes.
  6. How to prevent DTC P0101 from happening again?
  7. To prevent DTC P0101 from happening again, you should follow some maintenance tips, such as:
  8. Keep the MAF sensor clean: You should clean the MAF sensor regularly, especially if you drive in dusty or humid conditions. You can use a MAF sensor cleaner spray to remove any dirt or contamination from the sensor.
  9. Inspect the MAF sensor wiring regularly: You should inspect the MAF sensor wiring regularly for any signs of damage, corrosion, or loose connections. You should repair or replace the wiring as soon as possible if you notice any problems.
  10. Inspect the intake system for air leaks regularly: You should inspect the intake system for any air leaks regularly, especially if you hear any hissing or whistling noises from the engine. You should repair or replace the intake system as soon as possible if you find any leaks.
  11. Inspect the engine vacuum system regularly: You should inspect the engine vacuum system regularly for any leaks, especially if you notice any performance or fuel economy issues. You should repair or replace the engine vacuum system as soon as possible if you detect any leaks.
