From Lag to Launch: Mastering the Mechanics of Turbocharged Performance

Do you want to make your car faster, stronger, and more efficient? If you do, you might want to consider getting a turbocharged engine. A turbocharged engine is an engine that uses a device called a turbocharger to boost its power and performance. A turbocharger is a clever invention that can make a big difference in how your car runs. But how does it work? What are its advantages and disadvantages? And what types of turbochargers are available for different needs?

In this article, we will answer these questions and more. We will unravel the mechanics of turbochargers and show you how they can transform your car into a turbocharged powerhouse.

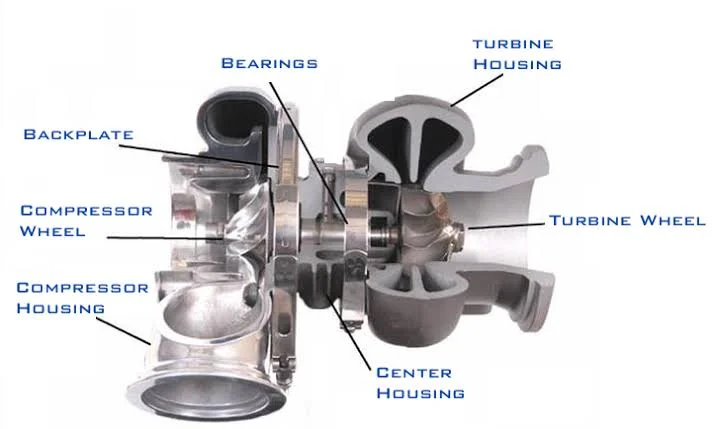

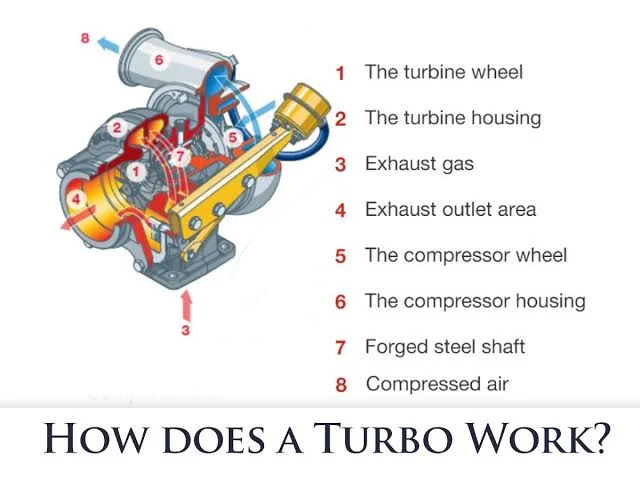

Understanding the Anatomy of a Turbocharger

A turbocharger is a device that consists of three main parts: a turbine, a compressor, and a wastegate. These parts work together to increase the amount of air that enters the engine, which in turn increases the power output of the engine. Let’s take a closer look at each part and see how they function.

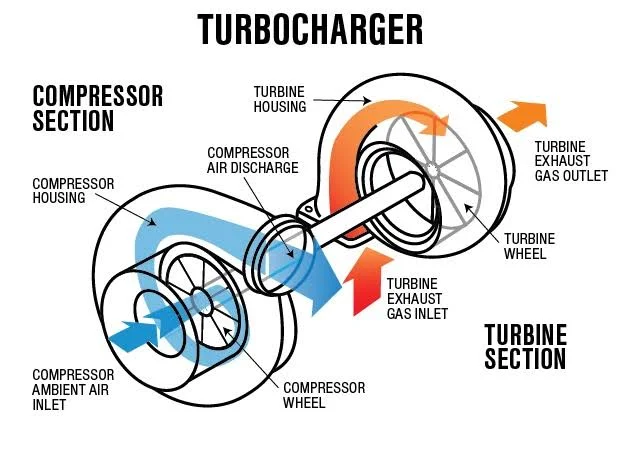

The Turbine

The turbine is the part of the turbocharger that is connected to the exhaust system of the engine. The exhaust system is the part of the engine that releases the waste gases that are produced by the combustion of fuel and air. The turbine uses the energy of these waste gases to spin at a very high speed. The spinning of the turbine creates a rotational force that is transferred to the compressor.

The Compressor

The compressor is the part of the turbocharger that is connected to the intake system of the engine. The intake system is the part of the engine that draws in fresh air from the outside. The compressor uses the rotational force from the turbine to pressurize the air and force it into the intake system. The pressurized air is also called boosted air, because it boosts the power of the engine.

The Wastegate

The wastegate is the part of the turbocharger that controls the amount of boost pressure that is created by the compressor. Boost pressure is the pressure of the boosted air that enters the engine. Too much boost pressure can damage the engine or cause it to over-rev, which means to spin faster than it is designed to. The wastegate prevents this by diverting some of the exhaust gases away from the turbine, reducing its speed and the boost pressure.

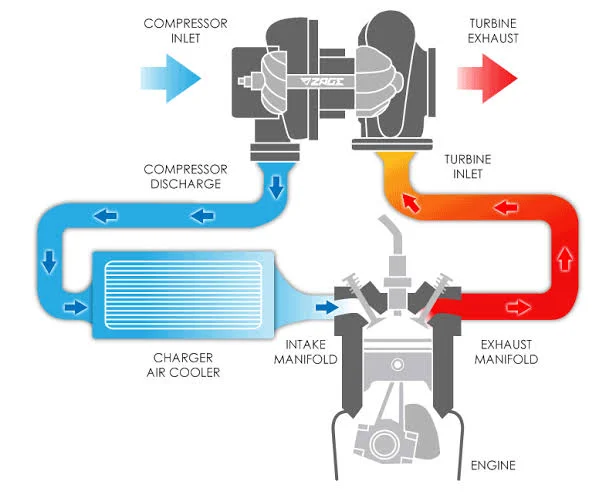

The Mechanics of Turbocharger Operation

Now that we know the parts of a turbocharger, let’s see how they work together to create a turbocharged engine. The process can be summarized in four steps:

1. The engine burns fuel and air in the cylinders, creating power and waste gases.
2. The waste gases exit the engine through the exhaust system and enter the turbocharger, where they spin the turbine.
3. The turbine transfers its rotational force to the compressor, which pressurizes the air and forces it into the intake system.
4. The intake system delivers the boosted air to the engine, where it mixes with more fuel and burns in the cylinders, creating more power.
5. The result is a cycle of increased power and efficiency, as the turbocharger uses the waste energy of the engine to create more useful energy for the engine.

Types of Turbochargers: Catering to Diverse Needs

Turbochargers come in different shapes and sizes, depending on the needs and preferences of the car owners and manufacturers. There are two main types of turbochargers: ball-bearing and journal-bearing. Each type has its own advantages and disadvantages, as we will see below.

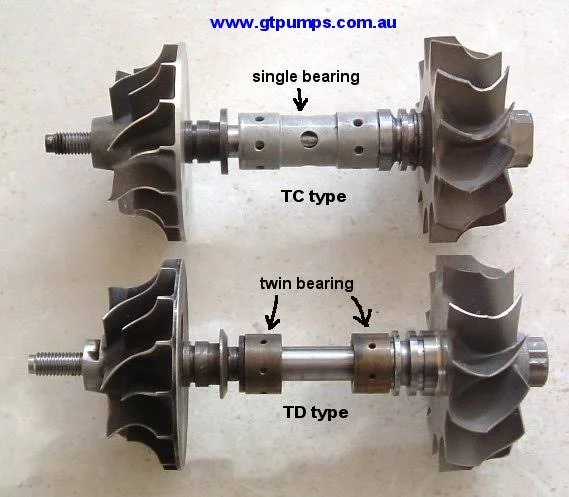

Ball-Bearing Turbochargers

Ball-bearing turbochargers are turbochargers that use ball bearings to support the shaft that connects the turbine and the compressor. Ball bearings are small metal balls that reduce the friction and wear between the shaft and the housing. Ball-bearing turbochargers have some advantages over journal-bearing turbochargers, such as:

• They have less friction and more efficiency, which means they can spin faster and create more boost pressure.
• They have less lag or turbo lag, which is the delay in power delivery at lower RPMs (revolutions per minute).
• They have longer lifespan and durability, as they can withstand higher temperatures and pressures.

However, ball-bearing turbochargers also have some disadvantages, such as:

• They are more expensive and complex, as they require more precision and materials to manufacture.
• They are more difficult to repair and replace, as they are not as widely available and compatible as journal-bearing turbochargers.

Journal-Bearing Turbochargers

Journal-bearing turbochargers are turbochargers that use journal bearings to support the shaft that connects the turbine and the compressor. Journal bearings are metal sleeves that allow the shaft to slide and rotate inside them. Journal-bearing turbochargers have some advantages over ball-bearing turbochargers, such as:

• They are cheaper and simpler, as they require less precision and materials to manufacture.
• They are easier to repair and replace, as they are more widely available and compatible with different engines and models.

However, journal-bearing turbochargers also have some disadvantages, such as:

• They have more friction and less efficiency, which means they spin slower and create less boost pressure.
• They have more lag or turbo lag, which is the delay in power delivery at lower RPMs.
• They have shorter lifespan and durability, as they can wear out faster and suffer from more heat and pressure.

Advantages of Turbochargers: Power and Efficiency in Harmony

Turbochargers are popular among car enthusiasts and manufacturers because they offer many benefits for the engine and the car. Some of the main advantages of turbochargers are:

1. They increase the power of the engine without significantly increasing the size of the engine. This means that a smaller engine can produce the same or more power than a larger engine, which can save space, weight, and cost.
2. They improve the fuel efficiency of the engine, as they allow the engine to extract more power from the same amount of fuel. This means that a turbocharged engine can use less fuel to produce the same or more power than a non-turbocharged engine, which can save money and reduce emissions.
3. They potentially reduce the emissions of the engine, as they enable the engine to burn the fuel and air more completely and cleanly. This means that a turbocharged engine can produce less harmful gases and particles than a non-turbocharged engine, which can benefit the environment and the health of the people.

Disadvantages of Turbochargers: Considerations and Trade-offs

Turbochargers are not perfect, however. They also have some drawbacks and limitations that need to be considered and weighed against their benefits. Some of the main disadvantages of turbochargers are:

1. They increase the initial cost of the engine, as they add more parts and complexity to the engine. This means that a turbocharged engine can be more expensive to buy and install than a non-turbocharged engine, which can affect the budget and the value of the car.
2. They increase the lag or turbo lag of the engine, as they take some time to spool up and create boost pressure. This means that a turbocharged engine can have a delay in power delivery at lower RPMs, which can affect the responsiveness and the performance of the car.
3. They increase the complexity and maintenance requirements of the engine, as they introduce more components and variables to the engine. This means that a turbocharged engine can be more difficult to tune and service than a non-turbocharged engine, which can affect the reliability and the longevity of the car.

Conclusion

Turbochargers are amazing devices that can enhance the power and efficiency of your car’s engine. They work by using the waste energy of the engine to create more useful energy for the engine. They have many advantages, such as increasing the power, improving the fuel efficiency, and potentially reducing the emissions of the engine. They also have some disadvantages, such as increasing the initial cost, the lag, and the complexity and maintenance requirements of the engine. Therefore, it is important to consider your specific application and requirements when deciding on a turbocharged engine.
