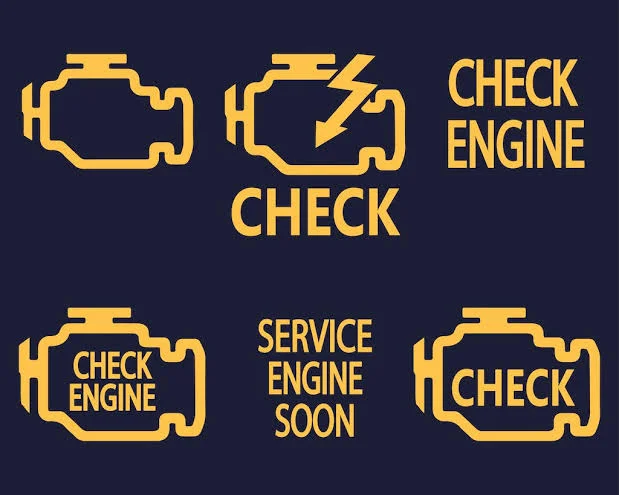

Have you ever seen a yellow or orange light on your dashboard that looks like an engine? This is called the check engine light, and it is one of the most important warning indicators for your vehicle. It tells you that something is wrong with your engine or its related systems, and that you need to take action to fix it.

But how do you know what is causing the check engine light to come on? And how do you reset it after you have solved the problem? In this article, we will answer these questions and more. We will explain the different methods for resetting a car’s check engine light, and the importance of understanding the underlying cause of the check engine light before resetting it. We will also introduce you to the world of diagnostic trouble codes (DTCs), which are the codes that the engine control unit (ECU) uses to communicate the issues to you. By the end of this article, you will have a comprehensive guide to decoding the check engine light and troubleshooting it effectively.

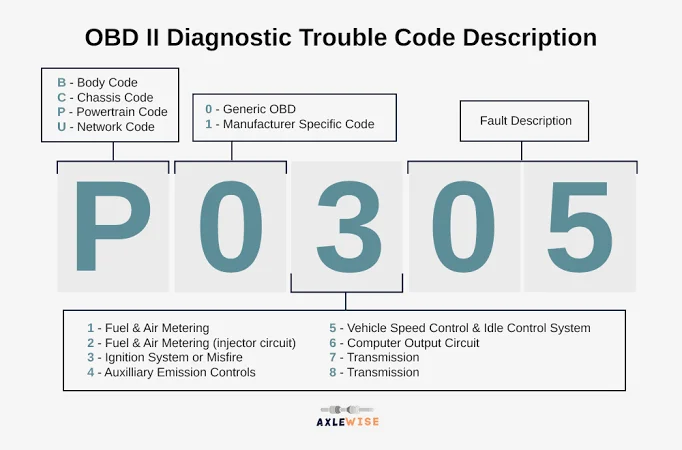

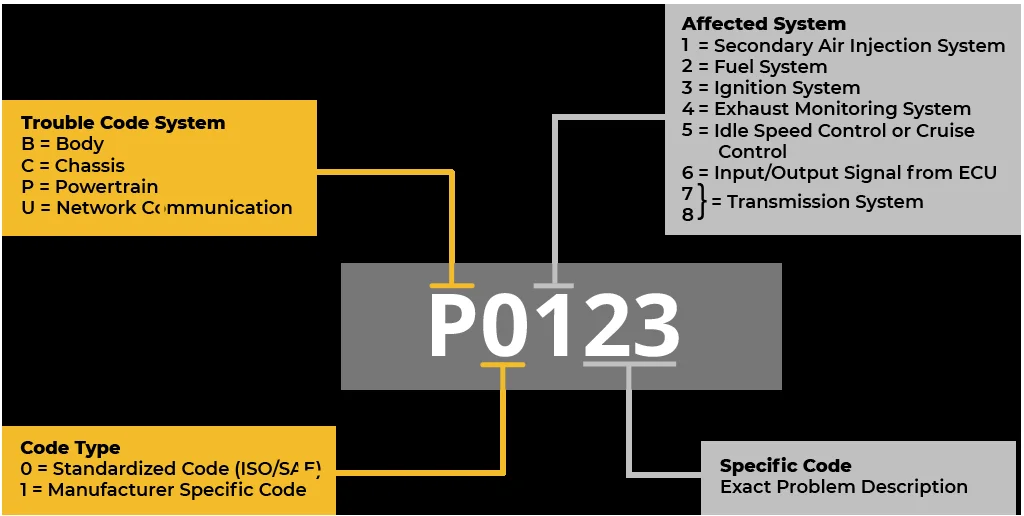

The World of Diagnostic Trouble Codes (DTCs)

Before we dive into the methods for resetting the check engine light, we need to understand what it actually means. The check engine light is not a specific indicator of a single problem, but rather a general indicator of a range of possible problems. The ECU, which is the computer that controls the engine and its related systems, monitors various sensors and parameters to ensure that everything is working properly. When it detects a problem, it stores a code in its memory that describes the nature and location of the problem. This code is called a diagnostic trouble code (DTC), and it is the language that the ECU uses to communicate with you.

There are hundreds of possible DTCs, each with a specific meaning and format. A typical DTC consists of a letter and four digits, such as P0300. The letter indicates the system that is affected, such as powertrain (P), chassis ©, body (B), or network (U). The first digit indicates the type of problem, such as generic (0), manufacturer-specific (1), or enhanced (2). The second digit indicates the subsystem that is affected, such as fuel and air metering (1), ignition system (3), or transmission (7). The last two digits indicate the specific component or condition that is at fault, such as cylinder misfire (00), oxygen sensor (02), or throttle position sensor (11).


To retrieve the DTCs from the ECU, you need a device called a scan tool. A scan tool is a handheld device that can connect to the vehicle’s OBD-II port, which is a standardized diagnostic connector that is usually located under the dashboard. Once connected, the scan tool can read the DTCs from the ECU and display them on its screen. Some scan tools can also provide definitions and possible causes for the DTCs, while others may require you to look up the meanings online or in a manual.


By reading and deciphering the DTCs, you can identify the specific component or system that is causing the check engine light to come on. This can help you narrow down the possible causes and solutions, and save you time and money on unnecessary repairs. However, keep in mind that DTCs are not always conclusive, and that some problems may require further diagnosis and testing by a qualified mechanic.


Resetting the Check Engine Light: A Step-by-Step Approach

Once you have identified and fixed the problem that is causing the check engine light to come on, you may want to reset it to turn it off. There are different methods for resetting a car’s check engine light, depending on the type of vehicle and the tools you have. Here are three common methods that you can try:

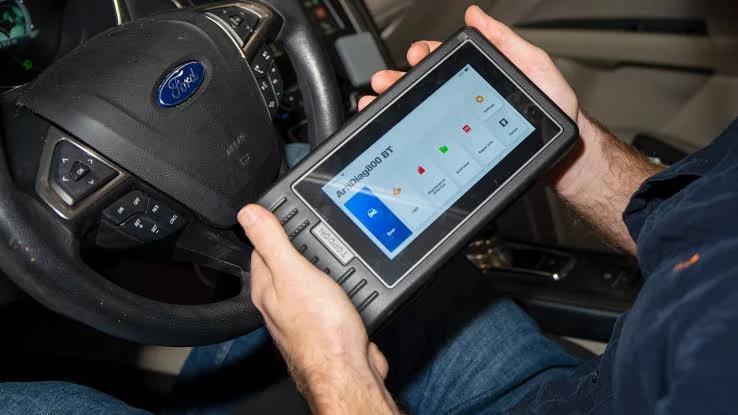

Method 1: Utilizing a Scan Tool

The easiest and most reliable method for resetting the check engine light is to use a scan tool. As we mentioned earlier, a scan tool can connect to the vehicle’s OBD-II port and communicate with the ECU. Besides reading the DTCs, a scan tool can also clear them from the ECU’s memory, which will reset the check engine light.


Here are the steps to follow:

  1. Connect the scan tool to the vehicle’s OBD-II port. The port is usually located under the dashboard, near the steering wheel. You may need to refer to your owner’s manual to find the exact location.
  2. Turn on the scan tool and select the “Reset Check Engine Light” option. The scan tool may have different names for this option, such as “Clear Codes”, “Erase Codes”, or “Reset ECU”.
  3. Follow the prompts on the scan tool to complete the reset process. The scan tool may ask you to confirm your action, or to turn the ignition key to the “On” position without starting the engine. The scan tool will then clear the DTCs from the ECU’s memory and reset the check engine light.
  4. Turn off the scan tool and disconnect it from the OBD-II port. Start the engine and check if the check engine light has turned off. If it has, you have successfully reset it. If it has not, there may be another problem that needs to be fixed, or the scan tool may not be compatible with your vehicle.

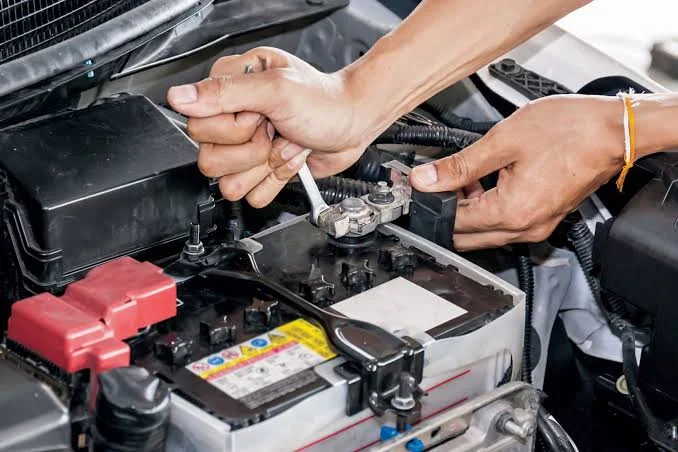

Method 2: Disconnecting the Battery

Another method for resetting the check engine light is to disconnect the battery. The battery is the main source of power for the vehicle’s electrical system, including the ECU. By disconnecting the battery, you can cut off the power to the ECU and reset its memory, which will also reset the check engine light. However, this method has some drawbacks, such as losing your radio presets, clock settings, and other personalized features. It may also trigger other warning lights, such as the airbag light or the anti-lock brake system (ABS) light, which may require additional steps to reset.


Here are the steps to follow:

  1. Ensure that the vehicle is turned off and parked in a safe location. You may also want to wear gloves and eye protection to avoid any sparks or injuries.
  2. Locate the battery terminals and disconnect the negative terminal first. The battery terminals are usually marked with a “+” sign for the positive terminal and a “-” sign for the negative terminal. The negative terminal is usually connected to a black wire, while the positive terminal is usually connected to a red wire. Use a wrench or a plier to loosen the nut or clamp that holds the terminal to the battery post, and then pull the terminal off the post. Be careful not to touch the positive terminal or any metal parts with the wrench or the plier, as this may cause a short circuit or a shock.
  3. Wait for approximately 30 minutes to allow the vehicle’s electrical system to fully discharge. This will ensure that the ECU’s memory is cleared and that the check engine light is reset.
  4. Reconnect the battery terminals in the reverse order. Start with the positive terminal, and then the negative terminal. Make sure that the terminals are securely attached to the battery posts, and that there are no loose or corroded connections.
  5. Start the engine and check if the check engine light has turned off. If it has, you have successfully reset it. If it has not, there may be another problem that needs to be fixed, or the battery may not have been disconnected long enough.

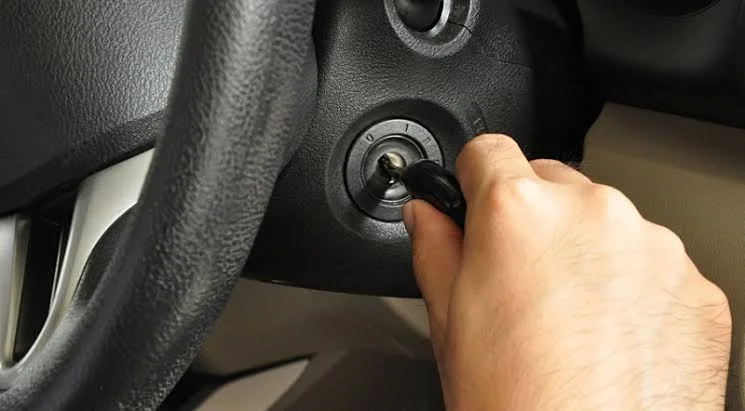

Method 3: Cycling the Ignition

A third method for resetting the check engine light is to cycle the ignition. This method involves turning the ignition key to the “On” and “Off” positions several times, which may trick the ECU into resetting its memory and the check engine light. However, this method is not very reliable, and it may not work for all vehicles. It may also cause some issues with the vehicle’s security system or the fuel pump.


Here are the steps to follow:

  1. Ensure that the vehicle is turned off and parked in a safe location.
  2. Turn the ignition key to the “On” position without starting the engine. The “On” position is usually the second position on the ignition switch, where the dashboard lights come on but the engine does not start.
  3. Turn the ignition key back to the “Off” position. The “Off” position is usually the first position on the ignition switch, where the dashboard lights go off and the key can be removed.
  4. Repeat steps 2 and 3 a total of three times. This will complete one cycle of the ignition.
  5. Start the engine and check if the check engine light has turned off. If it has, you have successfully reset it. If it has not, there may be another problem that needs to be fixed, or the ignition cycle may not have been performed correctly.


Interpreting the Check Engine Light’s Reappearance

Regardless of the method you use to reset the check engine light, you need to understand that resetting the check engine light only clears the diagnostic code, not the underlying issue. The check engine light is a symptom of a problem, not the problem itself. If you do not fix the root cause of the check engine light, it will likely come back on sooner or later. This may cause more damage to your vehicle, and more expenses for you.

Therefore, it is important to address the root cause of the check engine light before attempting to reset it. You can use the DTCs to guide you to the possible causes and solutions, but you may also need to perform some additional diagnosis and testing to confirm the problem. If you are not sure how to do this, or if the problem is too complex for you, it is advisable to seek professional assistance from a qualified mechanic. A mechanic can use more advanced tools and techniques to diagnose and fix the problem, and ensure that your vehicle is safe and reliable.


Conclusion

The check engine light is a common and frustrating problem that many drivers face. It can indicate a variety of issues, from minor to major, that affect the performance and efficiency of your vehicle. To decode the check engine light, you need to understand the concept of diagnostic trouble codes, which are the codes that the engine control unit uses to communicate the issues to you. You can use a scan tool to retrieve and clear the diagnostic trouble codes, and reset the check engine light. Alternatively, you can try other methods, such as disconnecting the battery or cycling the ignition, to reset the check engine light. However, these methods are not always effective, and they may have some drawbacks.

The most important thing to remember is that resetting the check engine light does not solve the underlying issue. The check engine light is a symptom, not a cause. If you do not fix the root cause of the check engine light, it will likely come back on, and cause more problems for your vehicle. Therefore, it is essential to address the root cause of the check engine light before attempting to reset it. You can use the diagnostic trouble codes to guide you to the possible causes and solutions, but you may also need to perform some additional diagnosis and testing to confirm the problem. If you are not sure how to do this, or if the problem is too complex for you, it is advisable to seek professional assistance from a qualified mechanic.


We hope that this article has helped you understand the check engine light better, and how to reset and troubleshoot it effectively. By following the steps and tips we have provided, you can navigate the check engine light dilemma with confidence and ease. Remember, the check engine light is not your enemy, but your friend. It is there to alert you of potential problems, and to help you keep your vehicle in optimal condition. Happy driving!
