Have you ever tried to fix a broken toy or make a cool gadget, only to end up with a mess of wires and melted metal? Or have you ever admired those shiny and intricate pieces of jewelry or art, and wondered how they were made? If you answered yes to any of these questions, then you might be interested in learning how to solder.
Soldering is a skill that allows you to join two or more pieces of metal together, using a special material called solder. Soldering is used in many applications, such as electronics, jewelry, repairs, and more. Soldering can help you create, fix, or customize anything you want, from simple circuits to complex sculptures.
But soldering is not as easy as it looks. It requires the right tools, preparation, and technique. It also involves some challenges and risks, such as heat, electricity, and toxic fumes. If you don’t know what you’re doing, you could end up with a poor or dangerous result, or even hurt yourself.
That’s why we created this comprehensive guide for beginners to master the art of soldering. In this guide, you will learn everything you need to know about soldering, from the basics to the advanced. You will also get some tips and tricks to avoid common problems and improve your skills. By the end of this guide, you will be able to solder like a pro, and enjoy the satisfaction and fun of creating your own projects.
Soldering Essentials
Before you start soldering, you need to get familiar with the essential equipment, preparation, and technique. These are the foundations of soldering, and they will help you achieve a clean and secure joint.
Equipment
The first thing you need is a soldering iron. This is a tool that heats up and melts the solder. There are different types of soldering irons, such as:
- Pencil iron: This is the most common and basic type of soldering iron. It has a simple design, with a metal tip and a plastic handle. It is easy to use and cheap, but it has limited temperature control and power.
- Station iron: This is a more advanced and expensive type of soldering iron. It has a separate base unit that controls the temperature and power of the iron. It also has a stand and a sponge for cleaning the tip. It is more precise and reliable, but it takes up more space and requires more maintenance.
- Cordless iron: This is a portable and convenient type of soldering iron. It runs on batteries or gas, and does not need a power outlet. It is ideal for outdoor or remote projects, but it has less temperature and power stability and shorter battery life.
The next thing you need is solder. This is the material that joins the metal pieces together. There are different types of solder, such as:
- Lead-free solder: This is the most environmentally friendly and safe type of solder. It does not contain lead, which is a toxic metal that can harm your health and the environment. It is also more durable and resistant to corrosion. However, it is more expensive and harder to work with, as it requires higher temperatures and more flux.
- Rosin core solder: This is the most popular and easy to use type of solder. It contains a core of rosin, which is a natural substance that acts as a flux. Flux is a chemical that helps the solder flow and stick to the metal. Rosin core solder is cheap and versatile, but it contains lead, which can be harmful if inhaled or ingested.
- Solid core solder: This is the simplest and cheapest type of solder. It does not contain any flux, and relies on external flux to work. It is suitable for some applications, but it is less convenient and effective than rosin core solder.
The last thing you need is some cleaning tools. These are used to keep your soldering iron tip and your metal surfaces clean and free of dirt, grease, and oxidation. These include:
- Sponge: This is a wet sponge that is used to wipe off the excess solder and flux from the tip of the soldering iron. It is important to clean the tip regularly, to prevent it from getting clogged or damaged.
- Brass wool: This is a metal wool that is used to scrub off the stubborn dirt and oxidation from the tip of the soldering iron. It is more abrasive and effective than a sponge, but it also wears down the tip faster.
- Sandpaper: This is a paper with a rough surface that is used to smooth and polish the metal surfaces before soldering. It is important to prepare the surfaces well, to ensure a good contact and adhesion of the solder.
Preparation
Before you start soldering, you need to prepare your work area and your materials. This will help you solder safely and efficiently. Here are some steps to follow:
- Choose a well-ventilated and well-lit area: Soldering produces heat, smoke, and fumes, which can be harmful to your eyes, skin, and lungs. You need to work in a place that has good air circulation and lighting, to avoid inhaling or burning yourself. You can also use a fan or a fume extractor to remove the smoke and fumes from your face.
- Wear eye protection and gloves: Soldering involves hot and molten metal, which can splash or fly off and injure your eyes or hands. You need to wear safety glasses or goggles and gloves, to protect yourself from accidents. You can also wear a mask or a respirator, to filter out the fumes and dust.
- Secure your materials and tools: Soldering requires you to hold and manipulate your soldering iron and your metal pieces, which can be tricky and unstable. You need to secure your materials and tools, to prevent them from moving or falling. You can use a vise, a clamp, or a helping hand, to hold your metal pieces in place. You can also use a stand, a holder, or a mat, to place your soldering iron when not in use.
- Clean your tip and your surfaces: Soldering requires you to have a clean and shiny tip and surfaces, to ensure a good flow and bond of the solder. You need to clean your tip and your surfaces, to remove any dirt, grease, or oxidation. You can use a sponge, a brass wool, or a tip cleaner, to clean your tip. You can use sandpaper, alcohol, or acetone, to clean your surfaces.
Technique

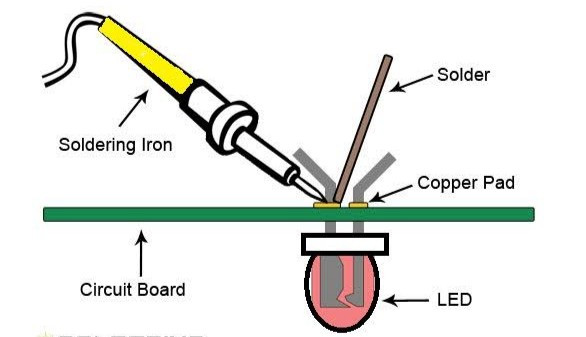

Once you have prepared your equipment and materials, you are ready to start soldering. Soldering is a process that involves heating, applying, and cooling the solder.
Here are some steps to follow:
- Heat the iron: Plug in your soldering iron and turn it on. Wait for it to reach the desired temperature, which depends on the type and size of your solder and your metal pieces. You can use a thermometer or a tester, to check the temperature of your iron. You can also adjust the temperature, using the knob or the dial on your iron or your station.
- Apply solder: Touch the tip of the soldering iron to the solder, and let it melt a small amount. This is called tinning the tip, and it helps the heat transfer and the solder flow. Then, touch the tip of the soldering iron and the solder to the joint, where the metal pieces meet. Let the solder flow and fill the joint, until it forms a smooth and shiny cone. This is called wetting the joint, and it ensures a strong and secure bond. Do not use too much or too little solder, as it can cause problems like cold joints, excess solder, or bridging.
- Join components: Remove the solder and the soldering iron from the joint, and let it cool down. Do not move or touch the joint, until it solidifies. This is called setting the joint, and it prevents cracks or breaks. Then, inspect the joint, and make sure it is clean and neat. You can use a magnifying glass or a microscope, to check the quality of the joint. You can also use a multimeter or a tester, to check the electrical continuity of the joint.
- Cool the iron: Turn off your soldering iron and unplug it. Wait for it to cool down completely, before storing it or cleaning it. Do not touch the tip or the body of the iron, as they can still be hot and burn you. You can use a stand or a holder, to place your iron safely.
Troubleshooting Tips
Soldering can be challenging and frustrating, especially for beginners. You might encounter some problems or mistakes, that can affect the outcome of your project.
Here are some common soldering problems, and how to fix them:
- Cold joint: This is a joint that is dull, cracked, or brittle. It is caused by insufficient heat, poor contact, or movement of the joint. It can result in a weak or unreliable connection, or even a short circuit. To fix it, you need to reheat the joint, and apply more solder or flux, until it melts and flows properly. Then, let it cool and set, without moving or touching it.
- Excess solder: This is a joint that has too much solder, forming blobs or spikes. It is caused by using too much solder, or applying solder for too long. It can result in a messy or ugly joint, or even a short circuit. To fix it, you need to remove the excess solder, using a solder sucker, a solder wick, or a desoldering iron. Then, you need to reheat the joint, and apply the right amount of solder, until it forms a smooth and shiny cone.
- Bridging: This is a joint that connects two or more points that should not be connected, creating a bridge of solder. It is caused by using too much solder, or applying solder to the wrong place. It can result in a faulty or dangerous circuit, or even a fire. To fix it, you need to remove the bridge of solder, using a solder sucker, a solder wick, or a desoldering iron. Then, you need to reheat the joint, and apply solder only to the intended points, until they are isolated and secure.
These are some of the most common soldering problems, but there are others that you might encounter, such as dry joints, solder balls, or lifted pads. The best way to avoid or solve these problems is to practice and improve your soldering technique, and to use the right tools and materials for your project.
Beyond the Basics
Once you have mastered the basics of soldering, you might want to explore more advanced topics and techniques. These will help you expand your knowledge and skills, and take your soldering to the next level. Here are some areas that you can dive into:
Different Types of Solder
As we mentioned before, there are different types of solder, such as lead-free, rosin core, and solid core. But there are also other factors that affect the properties and performance of solder, such as:
- Diameter: This is the thickness of the solder wire. It ranges from 0.2 mm to 3 mm, depending on the size and precision of your project. Thinner solder is easier to control and apply, but it melts faster and requires more flux. Thicker solder is harder to control and apply, but it melts slower and requires less flux.
- Alloy: This is the composition of the solder, or the ratio of metals that it contains. The most common alloy is 60/40, which means 60% tin and 40% lead. Other alloys include 63/37, 50/50, or 96/4, which have different melting points, strengths, and costs. You need to choose the right alloy for your project, depending on the temperature and durability that you need.
- Flux: This is the chemical that helps the solder flow and stick to the metal. It can be either inside the solder (core) or outside the solder (paste or liquid). There are different types of flux, such as rosin, water-soluble, or no-clean. Rosin flux is the most common and versatile, but it leaves a sticky residue that needs to be cleaned. Water-soluble flux is easy to clean, but it can corrode the metal if not rinsed well. No-clean flux is convenient, but it can leave a white residue that can affect the appearance or function of the circuit.
You need to experiment and find the best type of solder for your project, depending on the size, temperature, and quality that you want.
Different Materials
Soldering is not limited to metals. You can also solder other materials, such as:
- Copper: This is the most common and easy to solder material. It is widely used in electronics, plumbing, and art. It has high conductivity, low resistance, and good durability. It is also relatively cheap and available. To solder copper, you need to clean it well, use a high temperature, and apply enough flux and solder.
- Brass: This is a metal alloy that contains copper and zinc. It is used in musical instruments, jewelry, and hardware. It has a golden color, a high melting point, and a moderate conductivity. It is also relatively expensive and rare. To solder brass, you need to clean it well, use a high temperature, and apply enough flux and solder.
- Wire: This is a thin and flexible strand of metal. It is used in electronics, crafts, and jewelry. It can be made of different metals, such as copper, steel, or silver. It has varying conductivity, resistance, and strength. It is also relatively cheap and available. To solder wire, you need to strip it well, twist it well, and apply enough flux and solder.
You need to be careful and precise when soldering different materials, as they have different properties and behaviors. You also need to consider the compatibility and the aesthetics of the materials, as they can affect the function and the appearance of your project.
Advanced Techniques
Soldering is not just about joining two or more pieces of metal together. It is also about creating, modifying, or repairing circuits and components. There are some advanced techniques that you can learn and use, such as:
- Surface mount soldering: This is a technique that involves soldering tiny components, such as resistors, capacitors, or LEDs, directly to the surface of a circuit board, without using holes or wires. It is used in modern electronics, such as smartphones, laptops, or tablets. It requires a very fine and precise soldering iron, a microscope or a magnifying glass, and a steady hand.
- Desoldering: This is a technique that involves removing solder or components from a circuit board, using heat or suction. It is used to repair or replace faulty or damaged components, or to salvage or reuse parts. It requires a solder sucker, a solder wick, or a desoldering iron, and a lot of patience and care.
- Using heat guns: This is a technique that involves using hot air to melt or reflow solder or components, without touching them. It is used to solder or desolder multiple or delicate components at once, such as ICs, connectors, or switches. It requires a heat gun, a nozzle, and a heat-resistant surface.
These are some of the advanced techniques that you can use to improve your soldering skills and projects. They are not easy to master, and they require a lot of practice and experience. But they can also be very rewarding and fun, as they open up new possibilities and challenges.
Project Ideas
Now that you have learned a lot about soldering, you might want to put your skills to the test and create your own projects. There are many things that you can make or do with soldering, such as:
- LED circuits: These are simple and colorful projects that involve soldering LEDs, resistors, and batteries, to create light effects. You can make a flashlight, a night light, a mood lamp, or a decoration. You can also add switches, sensors, or controllers, to make them interactive or programmable.
- DIY electronics kits: These are fun and educational projects that involve soldering various components, such as transistors, capacitors, diodes, or speakers, to create electronic devices. You can make a radio, a calculator, a synthesizer, or a game. You can also follow instructions, schematics, or tutorials, to learn how they work and how to improve them.
- Jewelry or art: These are creative and artistic projects that involve soldering different materials, such as copper, brass, wire, or beads, to create jewelry or art. You can make a necklace, a bracelet, a ring, or a pendant. You can also design, shape, or decorate them, to express your style and personality.
These are some of the project ideas that you can try with soldering, but there are many more that you can explore and invent. You can also combine soldering with other skills or hobbies, such as woodworking, sewing, or painting, to create unique and original projects.
Conclusion
Soldering is a skill that can help you create, fix, or customize anything you want, from simple circuits to complex sculptures. Soldering can also be fun and rewarding, as you can see your ideas come to life and enjoy the satisfaction of mastering a craft.
But soldering is not easy. It requires the right tools, preparation, and technique. It also involves some challenges and risks, such as heat, electricity, and toxic fumes. You need to learn and practice a lot, to avoid or solve common problems and improve your skills.
That’s why we created this comprehensive guide for beginners to master the art of soldering. In this guide, you learned everything you need to know about soldering, from the basics to the advanced. You also got some tips and tricks to solder like a pro, and some project ideas to inspire you.
