How Expansion Chambers Boost the Power of 2-Stroke Engines

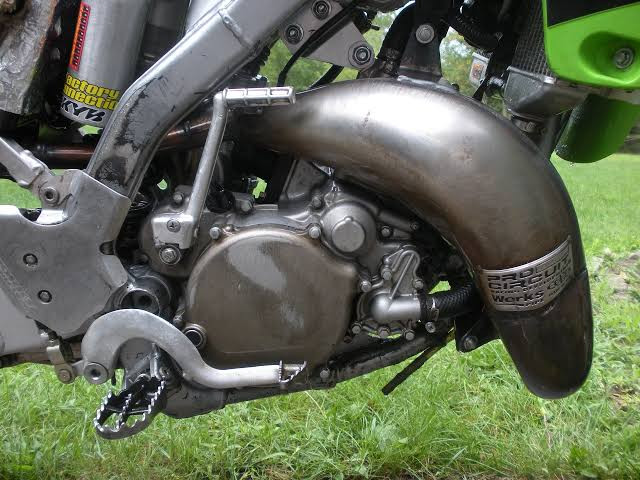

If you are a fan of motorcycles, dirt bikes, or jet skis, you may have noticed that some of them have a peculiar shape in their exhaust systems. These are called expansion chambers, and they are used to improve the performance and efficiency of 2-stroke engines. But what are 2-stroke engines, and how do expansion chambers work?

In this article, we will explain the basics of 2-stroke engines and expansion chambers, and why they are a perfect match for each other.

What are 2-stroke engines?

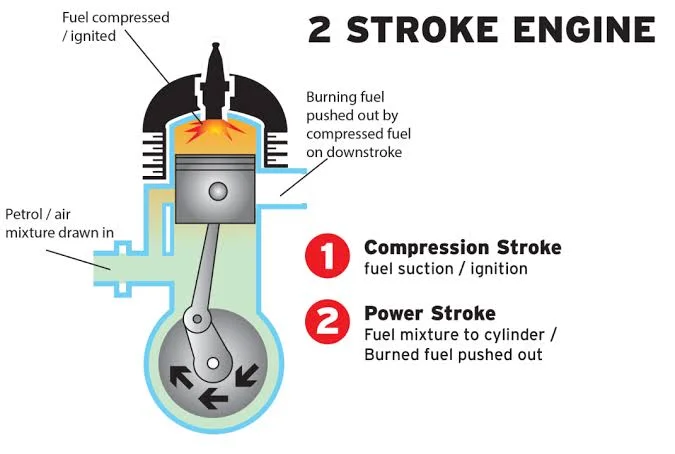

2-stroke engines are a type of internal combustion engines that complete one power cycle in two piston strokes, or one crankshaft revolution. This means that they have a high power-to-weight ratio and a simple design, which makes them ideal for lightweight and compact applications, such as motorcycles, dirt bikes, jet skis, lawn mowers, and chainsaws.

However, 2-stroke engines also have some drawbacks, such as low fuel efficiency, high emissions, and poor performance at low speeds. This is because the exhaust and intake processes occur simultaneously in 2-stroke engines, which can result in a loss of fuel-air mixture and reduced power output. To overcome these limitations, 2-stroke engines need expansion chambers.

What are expansion chambers?

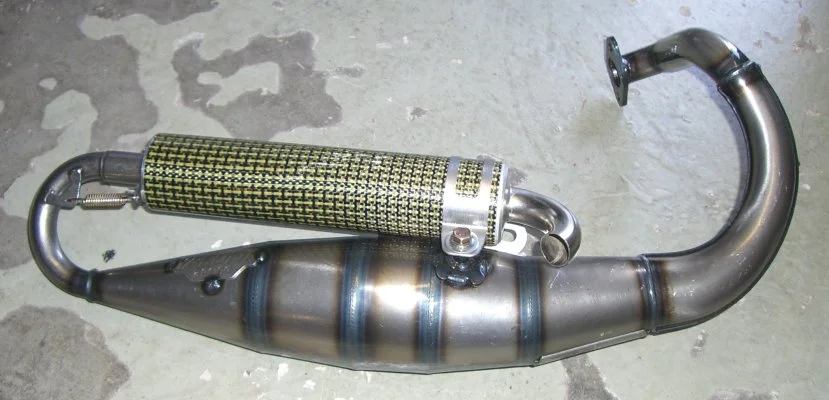

Expansion chambers are special exhaust systems that are used to improve the power output and the volumetric efficiency of 2-stroke engines by using sound waves. An expansion chamber is a pipe that has a varying diameter and length, and it is attached to the exhaust port of the engine. The expansion chamber works by creating and reflecting pressure waves that interact with the gas flow in the engine. The pressure waves are generated by the combustion of fuel and air in the cylinder, and they travel through the pipe at the speed of sound. The shape and the size of the pipe determine the timing and the strength of the pressure waves.

Two main types of pressure waves are used by the expansion chamber: negative waves and positive waves. Negative waves are waves that have a lower pressure than the ambient pressure, and they help to suck the exhaust gas out of the cylinder and draw fresh air and fuel mixture into the cylinder. Positive waves are waves that have a higher pressure than the ambient pressure, and they help to push the fresh air and fuel mixture back into the cylinder and prevent the exhaust gas from escaping.

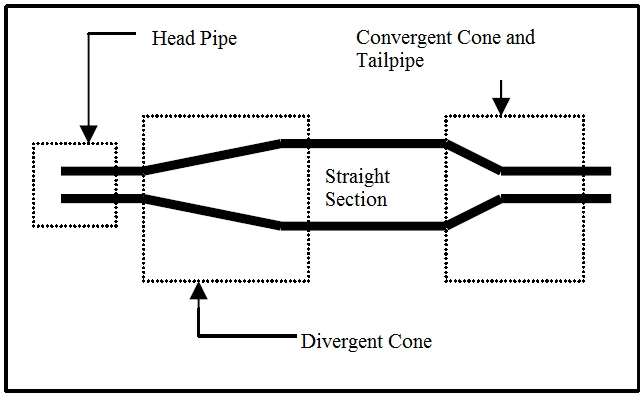

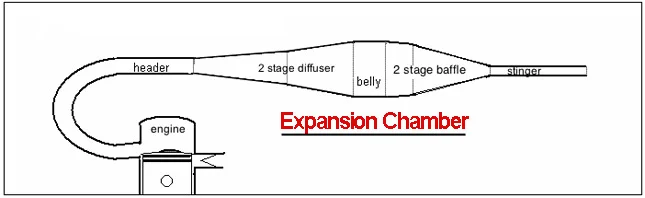

The expansion chamber is designed to create and reflect the negative and positive waves at the right time and place, depending on the engine speed and the desired power output. The expansion chamber has three main parts: the header, the diffuser, and the baffle.

1. The header is the part that connects the expansion chamber to the exhaust port, and it has a constant or slightly divergent diameter. The header preserves the energy of the initial pressure wave that comes out of the cylinder, and it reflects a negative wave to the cylinder. The negative wave helps to scavenge the exhaust gas and fill the cylinder with fresh air and fuel mixture.
2. The diffuser is the part that follows the header, and it has a gradually increasing diameter. The diffuser reflects a positive wave to the cylinder, and it also creates a low-pressure zone behind the positive wave. The positive wave helps to compress the fresh air and fuel mixture in the cylinder, and the low-pressure zone helps to prevent the exhaust gas from entering the pipe.
3. The baffle is the part that ends the expansion chamber, and it has a sudden decrease in diameter. The baffle reflects a strong positive wave to the cylinder, and it also creates a high-pressure zone behind the positive wave. The strong positive wave helps to seal the exhaust port and increase the cylinder pressure, and the high-pressure zone helps to push the exhaust gas out of the pipe.

By using the expansion chamber, the 2-stroke engine can achieve a higher power output and a better volumetric efficiency, as well as a lower fuel consumption and a lower emission level. The expansion chamber also improves the performance of the engine at low speeds, as it helps to overcome the poor gas flow and the poor scavenging of the 2-stroke engine.

Why are expansion chambers a perfect match for 2-stroke engines?

Expansion chambers are a perfect match for 2-stroke engines because they help to overcome the inherent limitations of the 2-stroke design, and they also enhance the advantages of the 2-stroke design. Expansion chambers help to:

• Increase the power output and the torque of the 2-stroke engine, especially at higher RPMs, by using the pressure waves to supercharge the engine and increase the cylinder pressure.
• Improve the fuel efficiency and the emission level of the 2-stroke engine, by reducing the loss of fuel-air mixture and increasing the combustion efficiency.
• Improve the performance and the reliability of the 2-stroke engine at low speeds, by improving the gas flow and the scavenging process, and by preventing the engine from overheating or detonating.

Expansion chambers are also a perfect match for 2-stroke engines because they are simple, lightweight, and cheap to produce, which fits well with the 2-stroke design philosophy. Expansion chambers can be easily tuned and customized to suit different engine specifications and applications, by changing the shape and the size of the pipe. Expansion chambers can also create a distinctive and appealing sound that many 2-stroke enthusiasts love.

Conclusion

2-stroke engines and expansion chambers are a perfect match for each other, as they complement each other’s strengths and weaknesses. Expansion chambers help to boost the power, efficiency, and performance of 2-stroke engines, by using sound waves to manipulate the gas flow in the engine. Expansion chambers are also simple, lightweight, and cheap to produce, which makes them ideal for 2-stroke applications. If you are looking for a fun and exciting way to enjoy the thrill of 2-stroke engines, you should definitely consider getting an expansion chamber for your 2-stroke machine. You will not regret it!
