Every modern driver knows the basics. P for Park, R for Reverse, N for Neutral, D for Drive. But stare at your gear selector for a moment longer, and you'll likely spot other mysterious letters staring back at you: S, M, L, B, W, even numbered positions that seem to mock your understanding.

These aren't automotive hieroglyphics designed to confuse you; they're purposeful engineering solutions that can dramatically improve your driving experience when you know how to use them.

I've watched countless drivers ignore these additional modes, missing out on enhanced performance, better fuel economy, and safer winter driving. Let's expose these transmission secrets once and for all.


The Core Four

Before we dive into the advanced options, let's ensure we're aligned on the fundamentals that every automatic transmission shares:

  1. P (Park) locks your transmission mechanically, preventing wheel movement when the engine is off. Think of it as an internal parking brake that engages steel pawls into the transmission's output shaft.
  2. R (Reverse) engages reverse gear ratios, typically using planetary gear sets to reverse the output shaft rotation.
  3. N (Neutral) disconnects the engine from the wheels entirely, allowing the car to roll freely, useful for towing or push starting in emergencies.
  4. D (Drive) provides full access to all forward gear ratios, with the transmission's computer determining optimal shift points based on throttle input, vehicle speed, and load conditions.

These four positions form the PRND foundation that's been standard since the 1950s. But modern transmissions offer much more sophisticated control.


Sport Mode

The S position transforms your transmission's personality entirely. In Sport mode, shift points move higher up the RPM range, keeping the engine in its power band longer. Your transmission will hold gears until you're extracting maximum performance from each ratio.

Here's what actually happens mechanically: the transmission control module adjusts its shift algorithms to prioritize power delivery over fuel economy. Instead of upshifting at 2,500 RPM for efficiency, Sport mode might hold until 4,000 RPM or higher.

Use Sport mode when:

  • Merging onto highways requiring quick acceleration
  • Navigating winding mountain roads
  • Overtaking slower traffic safely
  • Any situation where immediate throttle response matters more than fuel economy

Important note: Sport mode doesn't damage your transmission, but it will increase fuel consumption by 10-15% during aggressive driving.


Manual Mode

M (Manual mode) essentially converts your automatic into a sophisticated manual transmission without the clutch pedal. You control gear changes using paddle shifters, a +/- gate on the shifter, or steering wheel buttons.

This isn't just a gimmick, it's genuine transmission control. When you select Manual mode, the torque converter remains engaged for smooth operation, but you determine exactly when gear changes occur. The transmission will still protect itself by forcing shifts if you approach redline or engine stall speeds.

Manual mode excels in these scenarios:

  1. Descending steep grades where engine braking is crucial
  2. Navigating stop-and-go traffic more smoothly
  3. Maximizing performance on track days or spirited driving
  4. Controlling exactly which gear you're in for optimal traction

Modern systems are remarkably responsive, many can execute gear changes in under 150 milliseconds.


Low Gear

L (Low) restricts your transmission to lower gear ratios, typically first and second gear only. This position maximizes torque multiplication and engine braking capability.

The mechanical advantage is significant: in first gear, your engine's torque might be multiplied by 4:1 or higher through the transmission's gear sets. This creates tremendous pulling power at low speeds.

Low gear proves invaluable for:

  • Towing heavy trailers up steep inclines
  • Driving through deep snow, sand, or mud where wheel slip is likely
  • Descending mountain passes where brake overheating is a concern
  • Rock crawling or serious off-road situations requiring precise speed control

Pro tip: Many drivers overlook Low gear's engine braking capability. When descending steep hills, L position can reduce brake pad wear by 80% while providing better control than riding the brakes.


Brake Mode

B mode appears primarily in hybrid and electric vehicles, though some conventional cars with advanced transmissions include it. B stands for "Brake" or "Battery charging" mode.

In hybrids, B mode increases regenerative braking intensity, capturing more kinetic energy to recharge the battery while providing stronger deceleration feel. The transmission works with the electric motor to create engine braking similar to downshifting in a manual car.

For conventional vehicles with B mode, it typically provides enhanced engine braking by holding lower gears longer and managing the torque converter lockup more aggressively.


Winter/Snow Mode

W mode appears on many European vehicles, particularly Mercedes-Benz, BMW, and Volvo models. This Winter or Snow mode fundamentally changes how your transmission launches the vehicle.

Instead of starting in first gear, W mode begins acceleration in second gear, reducing torque at the wheels to minimize wheel spin on slippery surfaces. Shift points also become gentler, preventing sudden torque delivery that could break traction.

The engineering logic is sound: second gear provides roughly 60% of the torque multiplication of first gear, dramatically reducing the likelihood of wheel spin on ice or snow while still providing adequate acceleration.

Critical insight: Don't use W mode on dry pavement, it creates unnecessary stress on the transmission and reduces performance. Save it for genuinely slippery conditions.


Numbered Positions: 1, 2, 3

Numbered gear positions allow you to limit the transmission's highest available gear. Position 1 restricts operation to first gear only, Position 2 allows first and second gears, and Position 3 permits first through third gears.

These positions differ from Low gear by providing more granular control. While L typically allows first and second gear, numbered positions give you exact limitation control.

Use numbered positions when:

  1. Position 1: Maximum engine braking on extremely steep descents
  2. Position 2: Optimal for slippery conditions requiring gentle torque delivery
  3. Position 3: Highway driving in mountainous terrain where fourth gear and overdrive would cause excessive shifting


Modern Innovations

Continuously Variable Transmissions (CVTs) adapt these concepts differently. Since CVTs don't have discrete gears, S mode adjusts the pulley ratios to simulate traditional gear holding, while L mode restricts the CVT to lower ratio ranges.

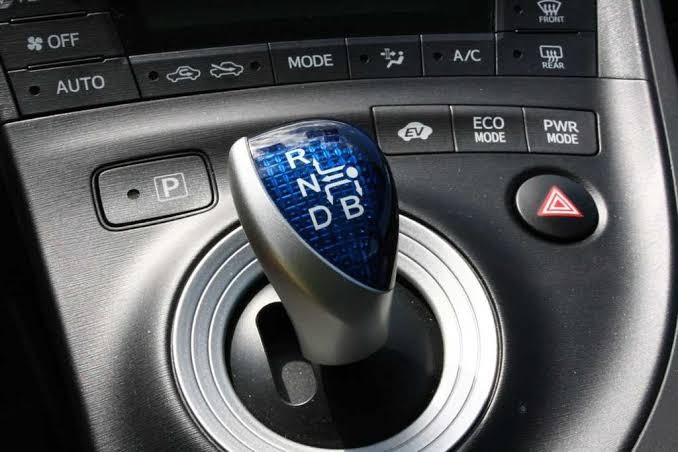

B mode in CVT hybrids like the Toyota Prius provides stepped engine braking that feels similar to gear based engine braking, even though the CVT is infinitely variable.


Understanding these transmission modes transforms you from a passive driver into an active partner with your vehicle's powertrain. Each mode serves specific engineering purposes that can enhance safety, performance, or efficiency when applied correctly.

Modern transmissions are sophisticated computers managing hundreds of variables every second. These additional modes give you direct input into that decision making process, allowing you to optimize performance for specific driving conditions.


Remember: Your owner's manual contains manufacturer specific details about your transmission's modes. While the fundamental concepts remain consistent across brands, implementation details vary. When in doubt, consult your specific vehicle's documentation for optimal results.
