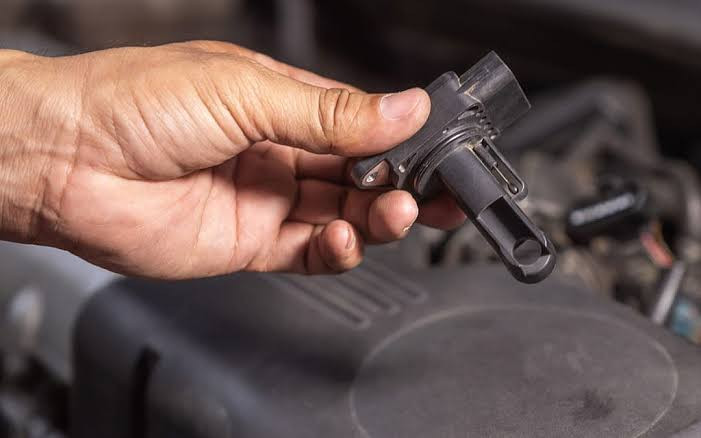

The Mass Air Flow sensor (MAF) plays a very crucial role in your car’s electronic fuel injection system. It is usually positioned in between the air filter and the engine’s intake manifold. This sensor quietly measures the amount of air entering the engine combustion chamber. In some cars, the intake air temperature (IAT) sensor is built into the mass air flow sensor.

Let’s explore how it works and what to watch out for.

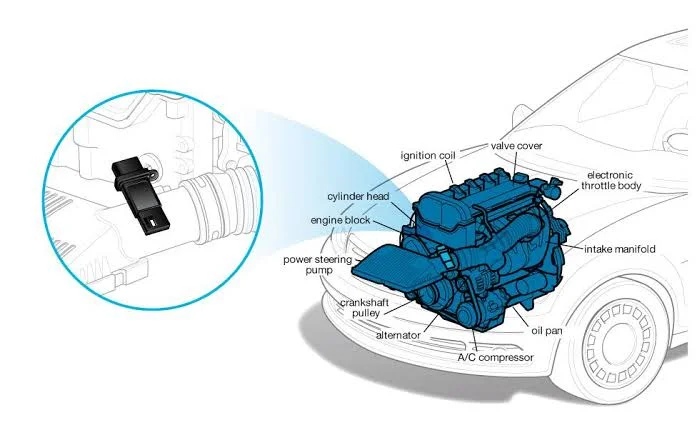

Mass air flow sensor

How Does a Hot-Wire Air Flow Sensor Work?

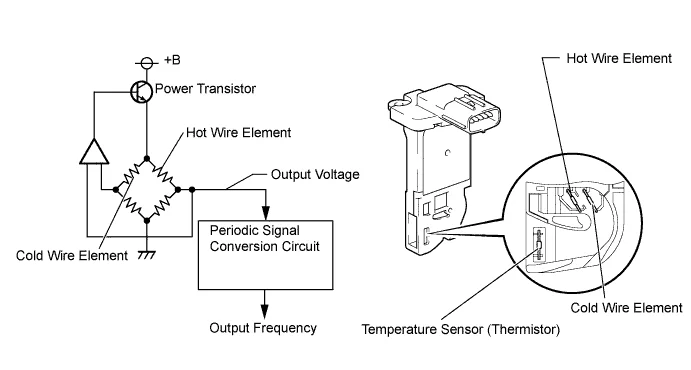

  1. Hot-Wire Design: Modern cars predominantly use a hot-wire type of MAF sensor. Picture a tiny electrically heated wire (the “hot wire”) suspended within the sensor housing. Close by, a temperature sensor monitors the air’s temperature near the hot wire. The wire temperature is kept constant. When more air passes the wire, more current is needed to keep the wire at a constant temperature. Mass air flow sensor hot wire The current that flows though the wire is a measure for the amount of passing air. The current is measured by the electronics in the sensor and converted to a voltage at the output of the sensor. The engine control unit (ECU) calculates the amount of air going into the combustion chambers from this voltage. This is important for calculating the amount of fuel to add to achieve the proper air-fuel ration (AFR), Ideal AFR is 14.7:1 (14.7 lb of air to 1.0 lb. of gasoline), but AFR can vary. Acceleration requires AFR of up to 12:1, while cruising requires levels as low as 22:1. A faulty mass air flow sensor can make it difficult or impossible for the engine control module (ECM) to calculate fuel injection correctly. This can cause a myriad of other problems for your vehicle.
  2. Idle Mode: When your engine is idling, only a small amount of air flows around the hot platinum wire hence requiring minimal electric current to keep the wire hot and at the required constant temperature.
  3. Throttle Action: As you press the throttle, the engine sucks more air which passes over the hot wire mass airflow sensor. This airflow cools the wire down since greater the airflow, the more electrical current is needed to maintain the wire’s temperature since the wire will be cooled by the airflow and to raise the temperature to the required constant temperature, a higher current will be required. The current’s magnitude directly corresponds to the volume of air flow.
  4. Digital Translation: Inside the MAF sensor, a tiny electronic chip converts this electric current variation into a digital signal which is then sent to the engine’s computer (PCM) and is used to calculate the precise amount of fuel to inject depending on the amount of air being sucked so as to maintain the correct fuel to air ratio for efficient combustion.
  5. Transmission Influence: The powertrain control module or PCM uses the input from the MAF along with other sensors to determine engine torque load on the transmission/transaxle, then controls the trans pressure control solenoid to provide appropriate line pressure increase for a given load. If the MAF sensor input is skewed, the PCM may not provide sufficient line pressure increase to prevent clutch and/or band slippage under load. This is also why an aftermarket excessively oiled air filter can cause a transmission failure. Oil gets on the MAF hot wire then dust sticks to it and insulates it. MAF input is skewed, the PCM doesn’t see the increase in load, line pressure is not increased appropriate to engine load, clutches/bands slip, the trans burns out, you walk home. If the MAF sensor misbehaves, your transmission might shift awkwardly.


Recognizing Symptoms of a Bad MAF Sensor

When the MAF sensor goes awry, it causes havoc on your driving experience:

  • No-Start Issues: A contaminated or failed MAF sensor can make the vehicle’s main computer, the engine control module, put too much air in the engine and not enough fuel causing poor fuel to air ratio which may lead to lean or rich mixtures.
  • Stalling and Power Loss: The MAF sensor is the primary means of detecting engine load. Between it and the throttle position sensor, it is how the computer knows that the engine is seeing increased air flow due to increased accelerator input. If the computer cannot properly determine the amount of air entering the engine, it will not know how to correctly mix in fuel, adjust ignition timing, or shift the transmission. Therefore with a faulty MAF sensor, you are likely to experience poor drivability issues such as engine stalling, jerking or hesitation during acceleration on highways or when starting the car.
  • Illuminated Warning Lights: Problems with the MAF signal will cause poor decisions to be made by the Powertrain Control Module which in return may trigger the Check Engine or Service Engine Soon light since there will be discrepancies in the amount of oxygen entering, burned and exiting from the oxygen sensors
  • Transmission Quirks: The PCM uses MAF readings to calculate engine torque which is used to determine shift pressure. If the sensor is under reporting shifts can be soggy and even slip. With the MAF unplugged I believe the PCM is supposed to increase line pressure as a fail safe. The shifting pattern of your automatic transmission might also behave oddly and may shift erratically.

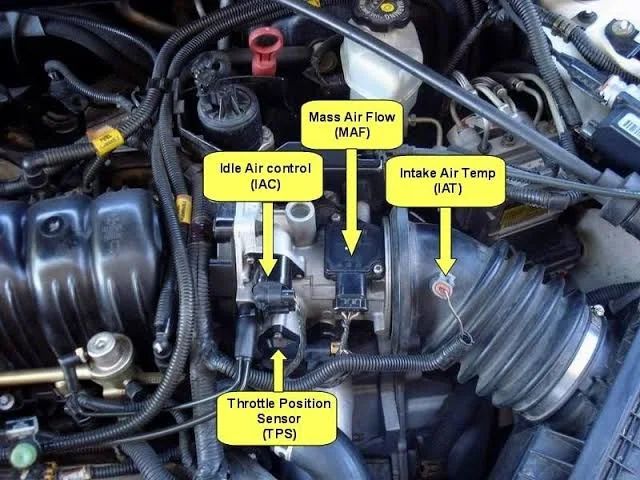

Mass air flow sensor

Trouble Codes and Diagnosis

If the MAF sensor signal deviates from the expected range, the PCM logs a fault. Retrieve the trouble code using a scan tool. Common trouble codes associated with MAF sensors include:

  1. P0100: Mass or Volume Air Flow Circuit Malfunction
  2. P0101: Mass or Volume Air Flow Circuit Range/Performance Problem
  3. P0102: Mass or Volume Air Flow Circuit Low Input
  4. P0103: Mass or Volume Air Flow Circuit High Input

Remember, a well-functioning MAF sensor ensures your engine breathes optimally, so keep an eye out for any symptoms and address them promptly. Happy driving!
