"Your tyres are the only thing standing between you and the road." This was just a simple but powerful statement made by Michelin, a renowned tyre manufacturer.

Tyre tread patterns are not just a design feature, they play a very crucial role in improving your vehicle’s safety, performance, and even fuel efficiency. Surprisingly, according to the National Highway Traffic Safety Administration (NHTSA), worn or improperly selected tyres contribute to nearly 11,000 accidents annually in the U.S. alone. That’s why understanding the different tyre tread patterns and their unique benefits is essential for every driver.

Tyre tread patterns

Tyre Tread Patterns

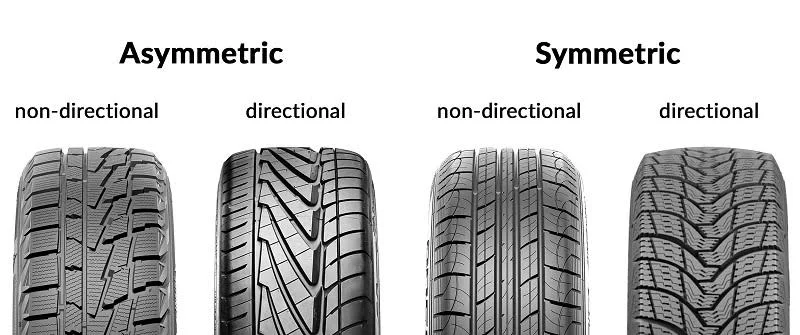

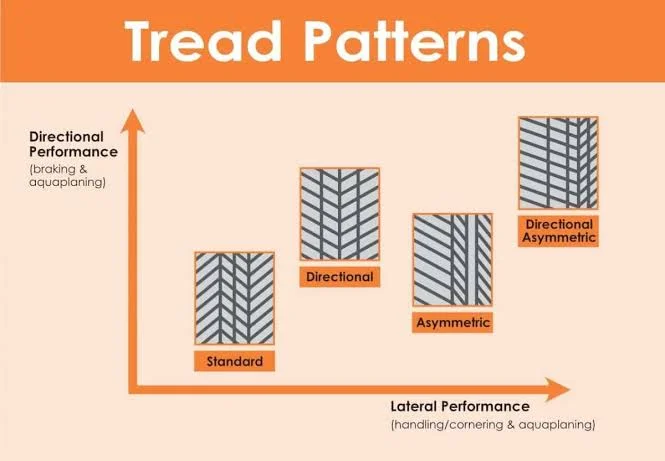

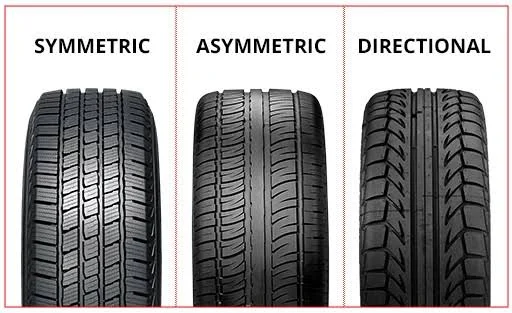

Tyre treads are not just there to look make your tyre look good or beautiful, they're engineered to handle specific driving conditions. From wet roads to icy streets, the right tread pattern ensures your car grips the road properly, preventing accidents. There are three primary types of tyre tread patterns namely: symmetrical, directional, and asymmetric. Each one has its strengths and is suited to different driving conditions. Let’s break it down.


1. Symmetrical Tread Patterns

They are the most common tread pattern you'll find on regular passenger vehicles is the symmetrical tread. It's designed for a smooth ride, with a steady, even contact patch that enhances stability and offers low rolling resistance.

It is a tread pattern design where the inner and outer sides of the tire are identical, with the same tread blocks and grooves on both sides. Symmetrical tread patterns are the most common type of tread pattern for passenger tires.


Features of symmetrical tread patterns:

  1. Smooth driving: Symmetrical tread patterns are designed for smooth driving.
  2. High directional stability: Symmetrical tread patterns provide high directional stability.
  3. Low rolling resistance: Symmetrical tread patterns have low rolling resistance.
  4. Can be mounted and rotated in any direction: Symmetrical tread patterns can be mounted and rotated in any direction, including front-to-back, back-to-front, or an X-pattern, without affecting performance

Symmetrical tyres are known for their durability. They're also quieter than other patterns and offer great wear resistance. However, they can struggle in wet conditions compared to other designs.

Tyre tread patterns

2. Directional Tread Patterns

Directional treads are designed to roll in one direction only, featuring a V-shaped pattern that helps channel water away from the tyre’s contact area. This design reduces the risk of aquaplaning, making these tyres a great choice for wet weather. Plus, they provide excellent traction on snow and mud.


Features of Directional tread patterns

  1. Arrowhead shape: The tread pattern is designed to roll in one direction and is shaped like an arrowhead.
  2. Water displacement: The tread pattern's V-shaped grooves help displace water efficiently, which helps prevent aquaplaning at high speeds.
  3. Traction: Directional tread patterns provide extra traction, which is useful for handling on snow and mud.
  4. Road holding: Directional tread patterns provide good road holding at high speeds.
  5. Arrow on sidewall: The sidewall of a tire with a directional tread pattern has an arrow to indicate the direction it should be fitted.
  6. Limited versatility: Directional tread patterns are less versatile than other types of tread patterns because they can only be fitted in one direction and on one side of the car.

However, the downside is that directional tyres require more attention when rotating. Unlike symmetrical tyres, they can only be rotated front to back. The pattern must face forward on each axle, so always look for the arrows printed on the sidewall.


3. Asymmetric Tread Patterns

Asymmetric tread patterns combine the benefits of both symmetrical and directional designs. The inner side of the tyre handles water displacement, while the outer side provides more traction for cornering and stability. This makes them the go-to choice for high-performance and sports cars.

An asymmetric tread pattern has different tread patterns on the inside and outside of a tire, which helps with grip and water dispersal:

  • Outer side: Larger tread blocks improve grip and cornering stability on dry roads.
  • Inner side: Smaller tread blocks improve wet grip and water dispersal.
  • Asymmetric tires require specific mounting and rotation:
  • Mounting: The tire must be mounted with the correct side facing out, which is usually marked on the sidewall.
  • Rotation: The tire must be rotated with the correct side facing out.
  • Position: Asymmetric tires can be fitted on all four positions of a car, but they must be oriented correctly.

Tyre tread patterns

Asymmetric tread patterns features:

  1. Different tread patterns on each side: The inner and outer sides of an asymmetric tire have different tread patterns.
  2. Larger blocks on the outside: The outer side of an asymmetric tire has larger tread blocks for better grip on dry surfaces.
  3. Grooves on the inside: The inner side of an asymmetric tire has grooves to disperse water on wet roads.
  4. Designed for different terrains: Asymmetric tires are designed to provide good handling on different terrains, including wet and dry roads.
  5. Typically found on sports cars: Asymmetric tires are often found on sports cars, but drivers in wet and wintry weather conditions often equip them.

But as with directional tyres, care is needed during rotation. Always follow the sidewall’s guidance to ensure proper fitment.


Why Mixing Tread Patterns Can Be Dangerous

It might seem like a good idea to mix different types of tyres on your car, but doing so can affect your vehicle's handling and safety. Manufacturers advise against mixing tread patterns, as it can cause inconsistent performance, especially during cornering or in wet conditions.

When replacing tyres, it’s best to buy a matching set or at least ensure that the tread patterns on each axle are the same. If replacing a single tyre, always place the new one on the rear axle for added stability.


Conclusion

Tyre tread patterns are more than just design; they’re a critical factor in vehicle safety and performance. By understanding the specific benefits of each tread pattern—whether you’re looking for better traction, fuel efficiency, or performance— you can make an informed decision about which tyres best suit your needs. And don’t forget, regular tyre maintenance and proper rotation are key to keeping your car running smoothly and safely. Take care of your tyres, and they’ll take care of you!


In the words of Continental, "The right tyre makes all the difference." So next time you’re choosing tyres, think beyond the price tag and consider what tread pattern will truly make your driving experience safer, smoother, and more efficient!
