Imagine this scenario: You're cruising down the highway when your car suddenly slams on the brakes. The vehicle ahead is incorrectly identified as being in your lane, triggering an emergency stop. This isn't just an inconvenience; it's a safety hazard. The cause? Improperly calibrated sensors.

In the modern world where we have software-defined vehicles, precise sensor calibration is paramount. It's the difference between a smooth, safe ride and a potential accident.

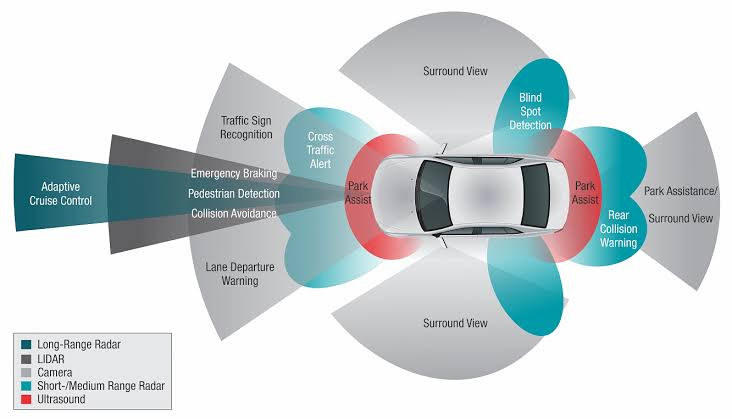

In today's automotive landscape, sensors are the eyes and ears of your vehicle. They enable advanced features like autonomous driving and intelligent driving assistants. But even the best sensors are useless if their data is unreliable. Calibration is the key to transforming raw sensor data into accurate, usable information. It's not just about passing validations or fulfilling regulations; it's about building trustworthy reference systems that ensure your safety on the road.


Sensors That Require Calibration and How to Do It

A. Anti-lock Braking System (ABS) Sensors

Any time you replace the ABS sensors, the wheel hub, or the control module, calibration is essential. These components work together to ensure your brakes function correctly under all conditions, preventing skidding and maintaining traction.

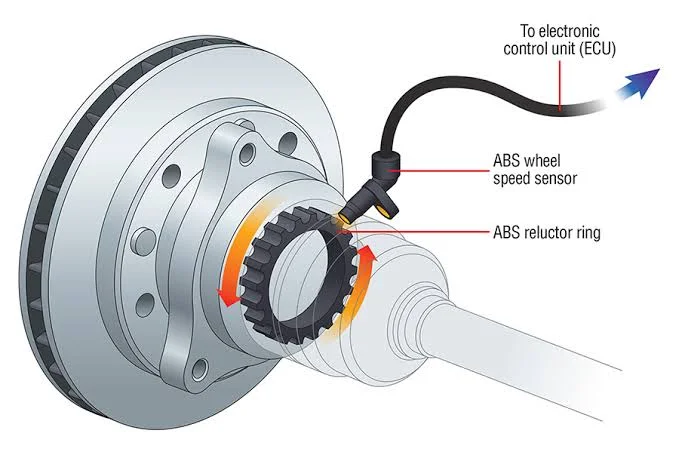

Abs sensor calibration

How to calibrate:

  1. Use a Diagnostic Scanner: Begin by connecting a diagnostic scanner to your car's OBD-II port. This tool communicates with your vehicle's computer to reset and calibrate the ABS system. Follow the scanner's instructions to initiate the calibration process.
  2. Perform a Test Drive: After resetting, take your car for a test drive at a moderate speed, around 30-50 mph. Many modern ABS systems are self-learning, meaning they adapt to your driving style and conditions over time. This drive helps the system recalibrate and fine-tune its responses.
  3. Verify Calibration: After the test drive, use the diagnostic scanner to check for any remaining fault codes. If the ABS warning light is still on, the system may need further adjustments or professional inspection.


B. Tire Pressure Monitoring System (TPMS) Sensors

Calibration is necessary after replacing the TPMS sensors, changing tires, or replacing the battery within the TPMS. These sensors monitor the air pressure in your tires, alerting you to any significant changes that could affect safety or fuel efficiency.

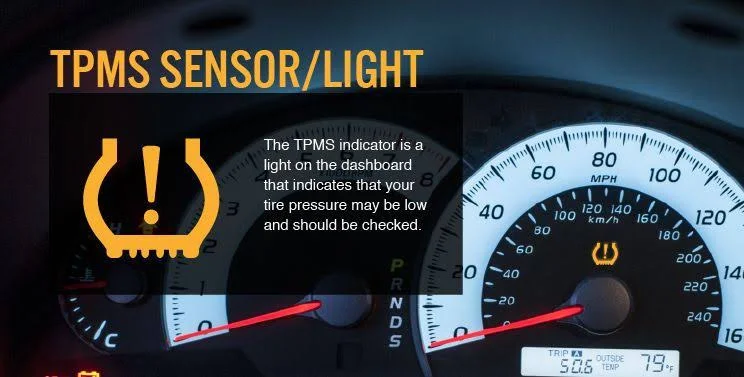

replacing the TPMS sensors

How to calibrate:

  1. Use the TPMS Reset Button: If your vehicle is equipped with a TPMS reset button, use it to initiate the recalibration process. This button is often located on the dashboard or near the driver's door.
  2. Drive for Calibration: After resetting, drive your car at a steady speed of 30-50 mph for 10-30 minutes. This allows the system to relearn the correct pressure levels for your tires.
  3. Manual Relearning with OBD-II Tool: For more precise control, use an OBD-II tool to manually trigger the sensor relearning process. This tool plugs into your car's diagnostic port and communicates directly with the TPMS.


C. Steering Angle Sensor (SAS)

Calibration is essential after any alignment work, steering rack repairs, or replacement of the SAS itself. This sensor helps your car understand the position of the steering wheel, which is crucial for systems like stability control and adaptive headlights.

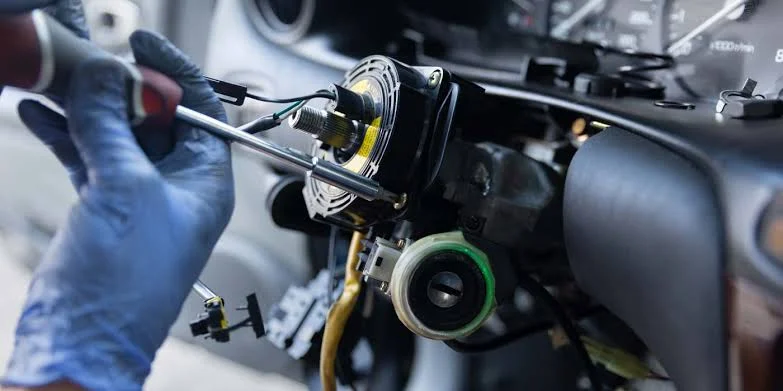

Steering Angle Sensor

How to calibrate:

  1. Turn the Steering Wheel: Start by turning the steering wheel fully to the left and right (lock to lock), then center it. This helps the sensor understand the full range of motion.
  2. Use a Scan Tool: Use a scan tool to reset and calibrate the sensor. This tool communicates with your car's computer to ensure the steering angle is accurately measured.
  3. Verify Alignment: After calibration, perform a test drive to ensure the steering feels correct and the vehicle tracks straight. If there are any issues, the sensor may need further adjustment.


D. Throttle Position Sensor (TPS)

Calibration is needed after replacing the throttle body, the TPS itself, or cleaning the throttle body. The TPS monitors the position of the throttle, which affects engine performance and fuel efficiency.

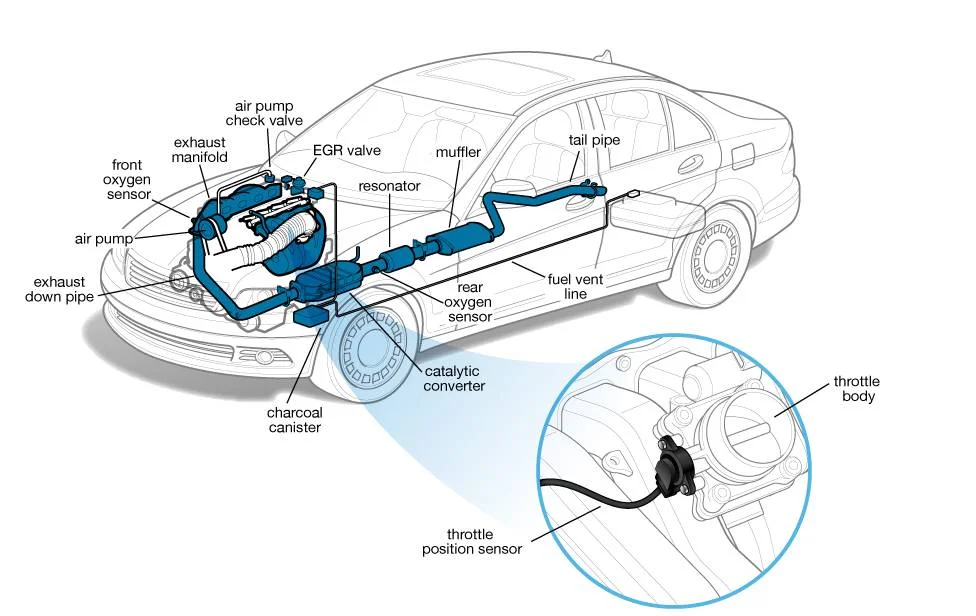

Calibration is needed after replacing the throttle body

How to calibrate:

  1. Disconnect the Battery: Disconnect the battery for 5-10 minutes. This resets the car's computer and clears any stored data that might interfere with calibration.
  2. Turn the Ignition On: Turn the ignition on without starting the engine, and slowly press the accelerator pedal to full throttle. This helps the sensor learn the full range of throttle positions.
  3. Restart the Car: Turn off the ignition and restart the car to complete the calibration process. Listen for any unusual engine noises or check engine lights that may indicate a problem.


E. Adaptive Cruise Control & Radar Sensors

Calibration is required after windshield replacement, bumper repairs, or replacement of the radar sensors. These sensors are crucial for maintaining a safe following distance and can affect the performance of other driver-assistance systems.


How to calibrate:

  1. Use Manufacturer-Specific Tools: Use manufacturer-specific calibration tools to initiate the calibration process. These tools are designed to work with your car's specific systems and ensure accurate results.
  2. Perform a Dynamic Calibration: Perform a dynamic calibration by driving at highway speeds. This allows the radar sensors to recalibrate and adapt to real-world conditions.
  3. Verify System Operation: After calibration, test the adaptive cruise control system to ensure it maintains the correct following distance and responds appropriately to other vehicles.


F. Lane Departure Warning & Camera-based Sensors

Calibration is necessary after windshield replacement or any repairs to the sensor or module. These sensors help keep your car centered in its lane and can alert you if you drift out of position.

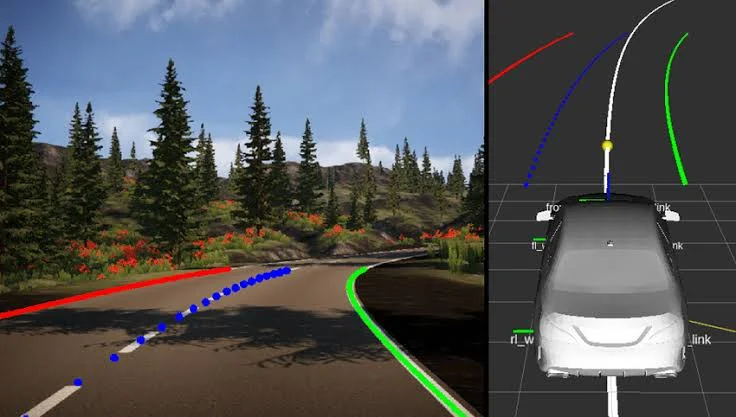

Lane Departure Warning & Camera-based Sensors

How to calibrate:

  1. Static Calibration: For some manufacturers, static calibration using target boards is required. These boards provide a fixed reference point for the camera sensors to calibrate against.
  2. Dynamic Calibration: Dynamic calibration involves driving under specific conditions, allowing the sensors to adapt to real-world scenarios. Follow the manufacturer's guidelines for the exact driving conditions required.
  3. Test the System: After calibration, test the lane departure warning system to ensure it functions correctly and alerts you when necessary.


G. Parking Assist & Proximity Sensors

Calibration is essential after bumper replacement or replacement of the sensors themselves. These sensors help you park safely by detecting obstacles around your car.

How to calibrate:

  1. Use a Diagnostic Tool: Use a diagnostic tool to reset and relearn sensor distances. This tool communicates with your car's computer to ensure the sensors are accurately measuring the space around your vehicle.
  2. Perform a Controlled Test: Perform a test in a controlled area to verify the accuracy of the sensors. This helps ensure they are functioning correctly and can detect obstacles reliably.
  3. Adjust as Necessary: If the sensors are not detecting obstacles accurately, use the diagnostic tool to make further adjustments.


H. Mass Air Flow (MAF) Sensor

Calibration is needed after cleaning the MAF sensor, replacing it, or performing repairs to the air intake system. The MAF sensor measures the amount of air entering the engine, which is crucial for maintaining the correct air-fuel mixture.

How to calibrate:

  1. Disconnect the Battery: Disconnect the battery for 10 minutes. This resets the car's computer and clears any stored data that might interfere with calibration.
  2. Idle the Engine: Let the engine idle for a few minutes after restarting. This allows the sensor to recalibrate and adapt to the new airflow conditions.
  3. Monitor Engine Performance: Listen for any unusual engine noises or check engine lights that may indicate a problem with the MAF sensor.


Tools Needed for Calibration

To perform these calibrations accurately, you'll need a few specialized tools. An OBD-II scanner is essential for communicating with your car's computer and initiating the calibration process. Manufacturer-specific calibration tools are often required for more complex systems, ensuring that the calibration is tailored to your vehicle's unique requirements. A TPMS reset tool is handy for quickly recalibrating your tire pressure monitoring system, and static calibration boards are necessary for camera-based sensors that require a fixed reference point.


Signs of Improper Calibration

Even with the best intentions, calibration can sometimes go awry. If you notice any of the following signs, it's a strong indication that your sensors may not be calibrated correctly:

  • ABS or TPMS warning lights staying on: These lights should turn off after a successful calibration. If they remain illuminated, it's a sign that the system is still detecting an issue.
  • Unresponsive or erratic cruise control: Adaptive cruise control relies on accurate sensor data to maintain a safe following distance. If the system is behaving unpredictably, the sensors may need recalibration.
  • Inaccurate lane-keeping assist behavior: Lane departure warning systems rely on precise camera calibration to function correctly. If your car is drifting out of its lane or the system is activating unexpectedly, the sensors may be misaligned.
  • Incorrect steering feel or pulling: The steering angle sensor plays a crucial role in maintaining proper steering feel and stability. If your car is pulling to one side or the steering feels off, the sensor may need recalibration.


When to Seek Professional Calibration

While many calibration tasks can be handled by a skilled DIY mechanic, there are times when professional help is warranted. Sensors that require dealership-level tools or complex radar and camera-based systems often benefit from the expertise of a trained technician. If you've attempted calibration on your own and are still experiencing issues, it may be time to seek professional assistance. Persistent calibration errors can lead to more significant problems down the road, so it's essential to address them promptly.


Conclusion

Calibrating your car’s sensors after repairs is not just a suggestion—it’s a necessity. It ensures your safety and the longevity of your vehicle. Don’t skip this step. Use the right tools or seek professional help. Your car will thank you, and so will your peace of mind. Start today by checking those sensors—it’s easier than dealing with the consequences of neglect.
