How to Rebuild a Car Battery (Is It Worth the Effort?)

Car batteries don’t last forever, but what if you could squeeze more life out of yours? The average battery lasts just 3–5 years, yet rebuilding one can cost half the price of a new one. Sounds tempting, right?

Before you grab your toolbox, let’s cut through the hype. Rebuilding a car battery isn’t for everyone, but if you’re up for a challenge, it can save you money, if done right. I’ll walk you through the step-by-step process, the risks, and whether it’s truly worth the effort.

The Truth About Battery Rebuilding

You turn the key, nothing. Just that dreaded click-click-click of a dead battery. A new one will set you back $150 or more, but before you rush to the auto parts store, consider this: many "dead" car batteries aren’t truly dead, they’re just heavily sulfated, and with the right process, they can often be revived.

I’ve spent years working on automotive electrical systems, and I can tell you that rebuilding a battery isn’t some backyard myth, it’s a real, science-backed method to extend battery life. But here’s the catch: it doesn’t work on every battery, and if done wrong, it can be dangerous.

In this guide, I’ll walk you through:

• How to tell if your battery is worth rebuilding (and when to just replace it)
• The step-by-step rebuilding process** (with exact measurements and safety precautions)
• Whether it’s actually worth your time (because sometimes, it just isn’t)

Is Your Battery a Good Candidate for Rebuilding?

Not all dying batteries can be saved. Before you invest time and effort, you need to diagnose whether yours has a fighting chance.

Signs Your Battery Might Be Rebuildable

• Slow cranking but still starts – If the engine turns over weakly but eventually starts, sulfation (crystal buildup) is likely the issue.
• Holds a charge but drains quickly – If a full charge only lasts a few days, the cells may be recoverable.
• Light terminal corrosion – A bit of white/green crust on the terminals is fixable; heavy corrosion means deeper damage.
• No physical damage – If the case isn’t swollen, cracked, or leaking, the internal structure is likely intact.

Signs Your Battery Is Beyond Saving

❌ Voltage below 10V – A healthy 12V battery should read 12.6V+ when fully charged. Below 10V means severe sulfation or dead cells.

❌ Bulging or cracked case – This indicates internal damage, possibly from freezing or overcharging. Do not attempt to rebuild, replace immediately.

❌ Strong rotten egg smell – This means the battery is venting sulfuric acid gas, a sign of internal failure.

❌ More than 5 years old – Even if you rebuild it, an old battery won’t last much longer.

Quick Voltage Test (Do This First!)

1. Turn off the car and let the battery rest for an hour.

2. Set a multimeter to DC voltage (20V range).

3. Touch the red probe to the positive (+) terminal, **black to negative (-).

• 12.6V+ = Healthy (no need to rebuild)
• 12.4V–12.6V = Needs a recharge
• 10V–12.4V = Sulfated (may be fixable)
• Below 10V = Too far gone

The Step-by-Step Battery Rebuilding Process

‼️Warning: Battery acid is extremely corrosive. Wear gloves, goggles, and work in a ventilated area. If you’re not comfortable handling acid, skip this and buy a new battery.

Tools & Supplies You’ll Need

• Safety gear – Nitrile gloves, goggles, long sleeves
• Multimeter – To check voltage before/after
• Battery charger – A smart charger (2–4 amp setting) works best
• Baking soda & distilled water – For cleaning and neutralizing acid
• Epsom salt (magnesium sulfate) – The key to desulfation
• Plastic funnel & bucket – For handling acid safely
• Flathead screwdriver – To remove cell caps
• Wire brush or sandpaper – For terminal cleaning

Step 1: Remove and Clean the Battery

• Disconnect the battery – Negative terminal first, then positive.
• Check for cracks or leaks – If found, stop here and recycle the battery.
• Clean the terminals – Mix 1 tbsp baking soda + 1 cup water, scrub with a wire brush, then rinse and dry.

Step 2: Test Voltage and Open the Cells

• Use the multimeter to confirm voltage (must be above 10V).
• Remove the cell caps – Some batteries have snap-off covers; others need a flathead screwdriver.

Be careful: Never pry forcefully—if caps won’t budge, the battery may be sealed (and thus not rebuildable).

Step 3: Drain and Neutralize the Old Acid

• Pour the old electrolyte into a plastic bucket – Do not use metal!
• Neutralize with baking soda – Slowly add 1/2 cup of baking soda to the bucket while stirring.

        Why? Sulfuric acid reacts with baking soda to form water and salt, making it safer to dispose of.

• Dispose properly – Take it to a hazardous waste facility, never pour it down the drain!

Step 4: Clean the Inside of the Battery

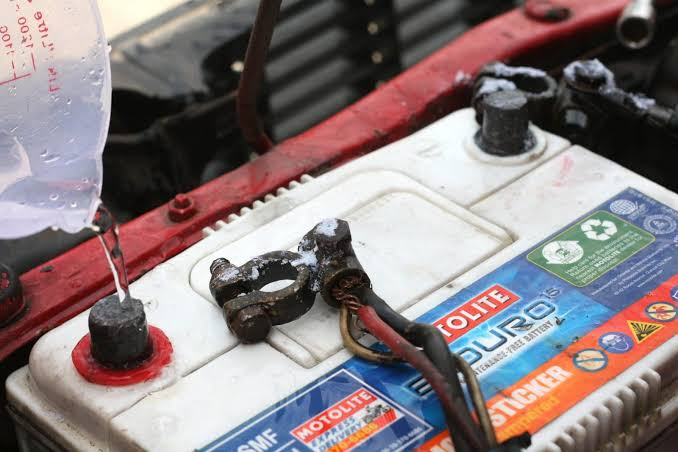

• Fill each cell with distilled water, shake gently, then drain.
• Repeat until water runs clear (this removes remaining acid residue).

Step 5: Mix and Add the Epsom Salt Solution

• Boil 4 cups of distilled water (helps dissolve Epsom salt faster).
• Add 7–8 oz of Epsom salt, stir until fully dissolved.
• Use a funnel to fill each cell – Fill just enough to cover the lead plates (~1/2 inch from the top).

Step 6: Recharge Slowly (The Most Critical Step!)

• Reattach the cell caps loosely (allows gas to escape).
• Connect the battery charger – Set to 2 amps for 24–36 hours.

        Why slow charge? Fast charging can warp lead plates. A slow charge helps dissolve sulfate crystals.

• Check voltage after 24 hours – It should now read 12.4V–12.6V.

Step 7: Load Test the Battery

• Reinstall in the car (positive terminal first, then negative).
• Turn on headlights for 5 minutes – If they stay bright, the battery is holding charge.
• Try starting the car – If it cranks strongly, you’ve succeeded!

Final Note

I know you are now wondering, why didn't we refill the battery with new sulfuric acid? Here is why:

In this method, we replace the old electrolyte with a safer Epsom salt (magnesium sulfate) solution which doesn’t require adding sulfuric acid back.

And why the Epsom salt solution?

1. It helps dissolve hardened sulfate crystals on the lead plates (desulfation)
2. Also acts as a mild, temporary electrolyte
3. And is safer to handle than sulfuric acid

Do not mix new acid with the Epsom salt solution, as this can lead to unpredictable chemical reactions and damage the battery.

However, if you're aiming for a full battery rebuild with commercial grade electrolyte, that’s a professional level process involving specific acid concentrations and safety precautions.

The Real Value of Battery Rebuilding, Cost-Benefit Analysis

Does Rebuilding Actually Save Money?

Let's break down the numbers. A typical mid-range car battery costs $120 - $200, while rebuilding requires:

• Epsom salt ($3 for 2 lbs)
• Distilled water ($1 per gallon)
• Baking soda ($1 for a small box)
• Your time (1-2 hours active work + 24-36 hours charging)

Total material cost: $5-$10

Potential savings: $110-$190

But here's what most guides don't tell you:

• Labor Value: At a professional mechanic's rate of $100/hour, your 2 hours of work would "cost" $200 in lost time.
• Success Rate: Even with perfect execution, only 60-70% of rebuild attempts fully restore battery capacity.
• Longevity: A successfully rebuilt battery typically lasts 6 - 12 months versus 3-5 years for new.

When Rebuilding Makes Financial Sense

1. You're on an extremely tight budget – That $150 difference matters right now
2. You need a temporary solution – Buying time before a planned replacement
3. You enjoy DIY projects – The learning experience has value beyond money
4. You have multiple batteries – Scaling the process improves cost efficiency

When Replacement Is the Smarter Choice

1. Your time is valuable – If you earn more than $50/hour, the math favors replacement
2. You need reliability – Critical for daily drivers or harsh climates
3. The battery is less than 4 years old – Diminishing returns on rebuild efforts
4. You lack proper tools/space – Safety concerns outweigh potential savings

Hidden Costs Most People Miss

• Energy Costs: A 36-hour charge at 2 amps consumes ~0.3 kWh (~$0.04 at average rates)
• Disposal Fees: Proper acid neutralization and recycling may incur small costs
• Opportunity Cost: Time spent rebuilding could be used for higher-value tasks

Professional vs. DIY Rebuilding

Surprising fact: Some battery shops offer free testing and cheap reconditioning that may be more cost-effective than DIY.

Environmental Considerations

Rebuilding keeps 10 - 15 lbs of lead and acid out of landfills per battery. However:

• Improper handling risks acid spills and lead contamination
• Modern batteries are 98% recyclable through proper channels
• The energy spent rebuilding may offset some eco-benefits

Who Should Actually Do This?

After hundreds of battery rebuilds, I recommend this approach for:

1. Preppers and homesteaders – Valuable skill for off-grid scenarios
2. Fleet managers – Scaling the process across multiple batteries improves ROI
3. Vintage car owners – Helps maintain period-correct batteries
4. Students and hobbyists – Excellent learning opportunity

For the average commuter? Unless you're in dire financial straits, the convenience and reliability of a new battery usually wins out.

Final Decision Tree

Ask yourself:

1. Is my battery between 3-4 years old? → Maybe rebuild
2. Does it show 10-12.4V on multimeter? → Maybe rebuild
3. Am I prepared for potential failure? → Then try
4. Would $150 save me significant stress? → Just replace

Remember: A rebuilt battery is like a patched tire – it works, but you shouldn't trust it for the long haul. Always have a backup plan.
