Your modern vehicle contains dozens of computers constantly talking to each other. When that conversation breaks down, your dashboard lights up with trouble codes that might leave you scratching your head.

If you've encountered U0021 through U0026 codes, you're facing a problem with your car's digital nervous system, the CAN Bus network. Let's break down what these codes really mean and how to fix them.


What is a CAN Bus?

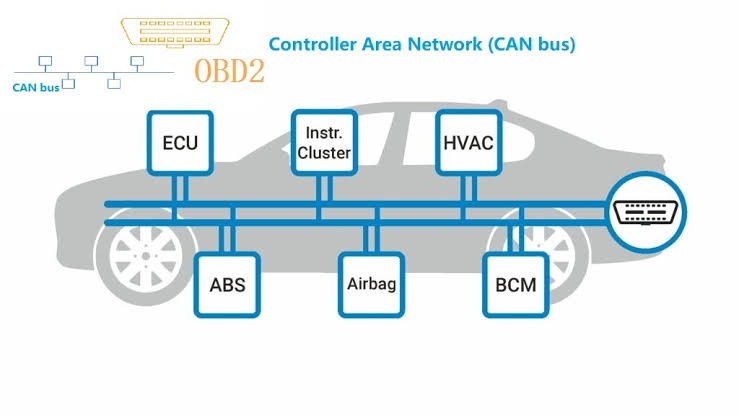

The Controller Area Network (CAN) bus is essentially your vehicle's internal communication system. Developed in the 1980s, it allows the various electronic control units (ECUs) in your car to share information without a host computer. Think of it as the nervous system connecting your car's electronic "brains."

Modern vehicles might contain 70+ ECUs controlling everything from engine management to power windows. These modules must communicate efficiently, and that's where the CAN bus comes in. It uses just two wires, CAN High (CANH) and CAN Low (CANL), to transmit data throughout your vehicle at high speeds.


U002X Family of Trouble Codes

The specific codes we're examining relate to problems with the Low Speed CAN bus network. Let's decode what each one means:

  1. U0021: Low Speed CAN Communication Bus (+) Open: This indicates an open circuit on the positive (+) wire of the Low Speed CAN bus network. Essentially, the CAN High wire has a break or disconnection somewhere, preventing proper communication.
  2. U0022: Low Speed CAN Communication Bus (+) Low: This code appears when the CAN High wire is showing a voltage that's too low. Instead of reaching the proper 3.5V during data transmission, it's stuck at a lower voltage.
  3. U0023: Low Speed CAN Communication Bus (+) High: The opposite of U0022, the CAN High wire is showing excessive voltage, staying above its normal range.
  4. U0024: Low Speed CAN Communication Bus (-) Open: Similar to U0021, but affecting the CAN Low wire. There's a break or open circuit in the negative side of the CAN bus.
  5. U0025: Low Speed CAN Communication Bus (-) Low: The CAN Low wire is showing a voltage that's too low, failing to meet the expected 1.5V during data transmission.
  6. U0026: Low Speed CAN Communication Bus (-) High: The CAN Low wire is showing excessive voltage, staying above its normal operating range.


Symptoms You Might Notice

When your CAN bus network has issues, your vehicle can develop multiple symptoms that seem unrelated. You might experience:

  1. Multiple warning lights on the dashboard
  2. Erratic gauge behavior
  3. Features that stop working (windows, radio, etc.)
  4. Modules that don't "wake up" or initialize
  5. Starting problems
  6. Poor performance or stalling
  7. Unexplained electrical gremlins

The frustrating part is that these symptoms can appear and disappear, making diagnosis challenging. Your car might work perfectly fine one moment and act possessed the next!


Common Causes of CAN Bus Failures

Several issues can lead to these communication errors:

  • Damaged or Broken Wires: Physical damage to the CAN bus wires from wear, rodents, or improper repairs
  • Corroded Connections: Moisture intrusion causing corrosion at terminals or connectors
  • Short Circuits: Wires touching each other or the vehicle chassis
  • Failed Modules: A faulty ECU that's corrupting the network
  • Improper Repairs: Aftermarket installations that interfere with the CAN network
  • Power Issues: Low battery voltage or poor ground connections
  • Water Damage: Moisture in critical electrical connectors


Diagnosing CAN Bus Issues

Tracking down CAN bus problems requires methodical testing:

Basic Steps:

  1. Check Your Battery: Low voltage can trigger communication errors
  2. Visual Inspection: Look for obvious wire damage, particularly around areas of recent repairs
  3. Check Fuses: Blown fuses can affect CAN bus operation
  4. Scan for Additional Codes: Other DTCs might provide clues about which module is causing issues


Advanced Diagnosis:

1. Resistance Testing: A healthy CAN network should show 60 ohms of resistance between CAN High and CAN Low when measured across the entire network

2. Voltage Measurements: With the ignition on, a working CAN bus will show:

  • About 2.5V on both wires when idle (recessive state)
  • CAN High rising to about 3.5V and CAN Low dropping to about 1.5V during communication (dominant state)

3. Oscilloscope Analysis: Professional technicians can use an oscilloscope to visualize the actual data signals


Fixing CAN Bus Problems

Repairing CAN bus issues isn't always straightforward, but here's a systematic approach:

1. Locate the Problem Area: Using service information, identify where the CAN bus wires run through your vehicle

2. Divide and Conquer: Disconnect modules one at a time to isolate which area might be causing the issue

3. Repair Damaged Wires: If you find broken, shorted, or corroded wires, repair them properly:

  • Use proper gauge wire
  • Maintain the twisted-pair configuration
  • Solder connections and use heat shrink tubing
  • Never use wire nuts or electrical tape for permanent repairs

4. Replace Faulty Modules: If testing points to a specific module, it may need replacement

5. Check for Aftermarket Equipment: Sometimes aftermarket stereos, alarms, or other accessories can interfere with CAN communications

6. Terminal Cleaning: Clean connector terminals using electrical contact cleaner


Prevention is Better Than Cure

To avoid CAN bus issues in the future:

  • Keep battery connections clean and tight
  • Be cautious when jump-starting or using battery chargers
  • Have proper documentation when installing aftermarket accessories
  • Address water leaks promptly
  • Be careful when working near wiring harnesses


When to Call a Professional

While some CAN bus issues can be identified with basic tools, professional help is recommended if:

  • You don't have access to proper diagnostic equipment
  • Multiple communication codes are present
  • You've checked obvious issues with no success
  • The problem is intermittent
  • You're uncomfortable working with vehicle electronics


CAN bus communication issues can be some of the most challenging problems to diagnose in modern vehicles. What seems like a simple wire issue can leave even experienced mechanics scratching their heads. The good news is that once properly diagnosed, the fix is often straightforward, though it might require painstaking inspection of wiring harnesses and connections.


Remember that these codes don't necessarily mean expensive repairs. Sometimes it's as simple as cleaning a corroded connector or repairing a damaged wire. With methodical troubleshooting and careful attention to detail, you can get your vehicle's electronic nervous system back in working order and communicating properly once again.
