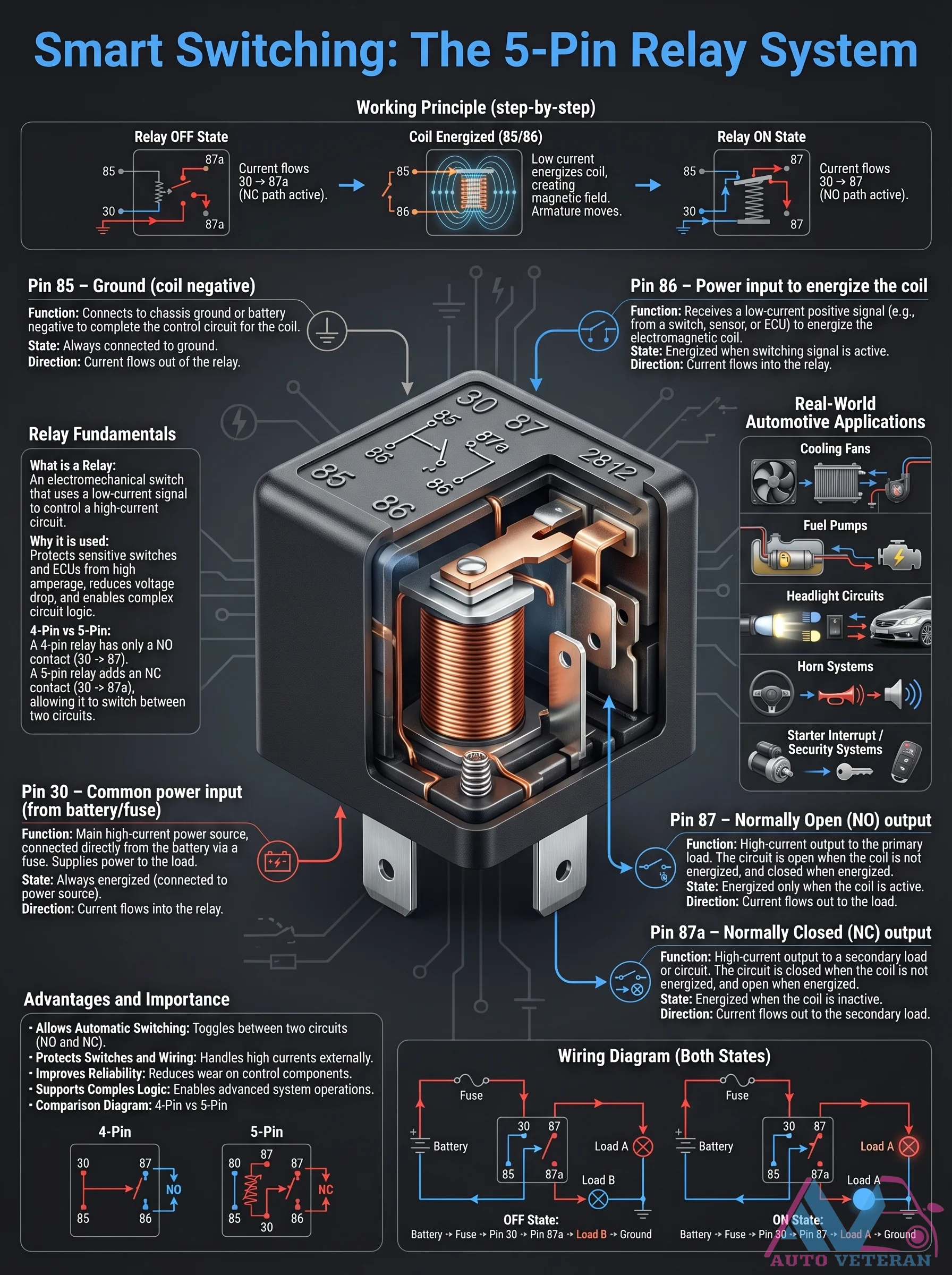

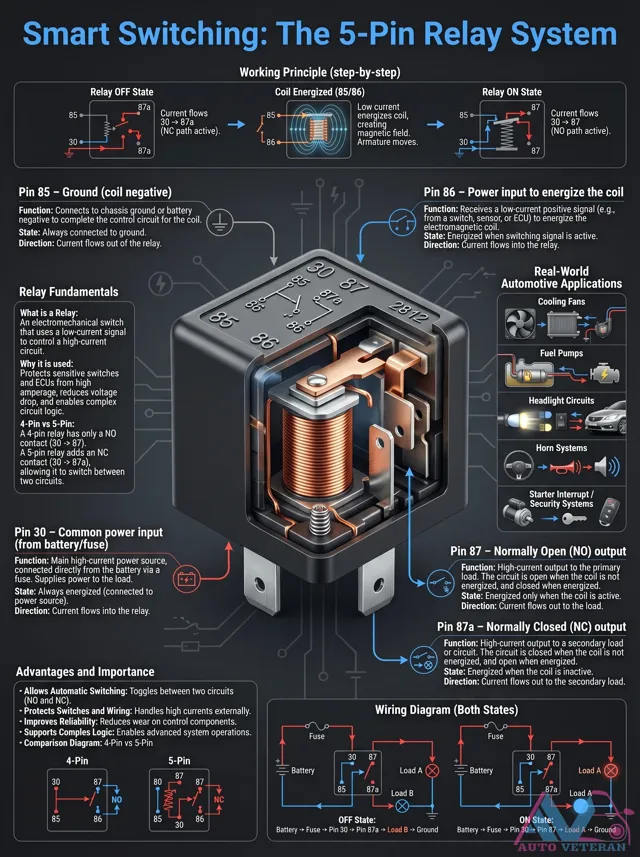

5-Pin Relay System Working Principle Step-by-Step

Understanding the smart switching operation of a 5-pin automotive relay system reveals its dual-circuit capability. The relay functions as an electromechanical switch that uses a low-current signal from a switch, sensor, or ECU to control high-current circuits. In the OFF state, the normally closed (NC) contact at pin 87a remains active, allowing current to flow to a secondary load. When the coil is energized via pins 85 (ground) and 86 (power input), it creates a magnetic field that moves the armature, switching to the normally open (NO) contact at pin 87, which then powers the primary load. This design allows automatic toggling between two circuits, protects sensitive switches and ECUs from high amperage, reduces voltage drop, and enables complex circuit logic. Common automotive applications include cooling fans, fuel pumps, headlight circuits, horn systems, and starter interrupt or security systems.
