Narrowband O2 Sensor Wiring Guide

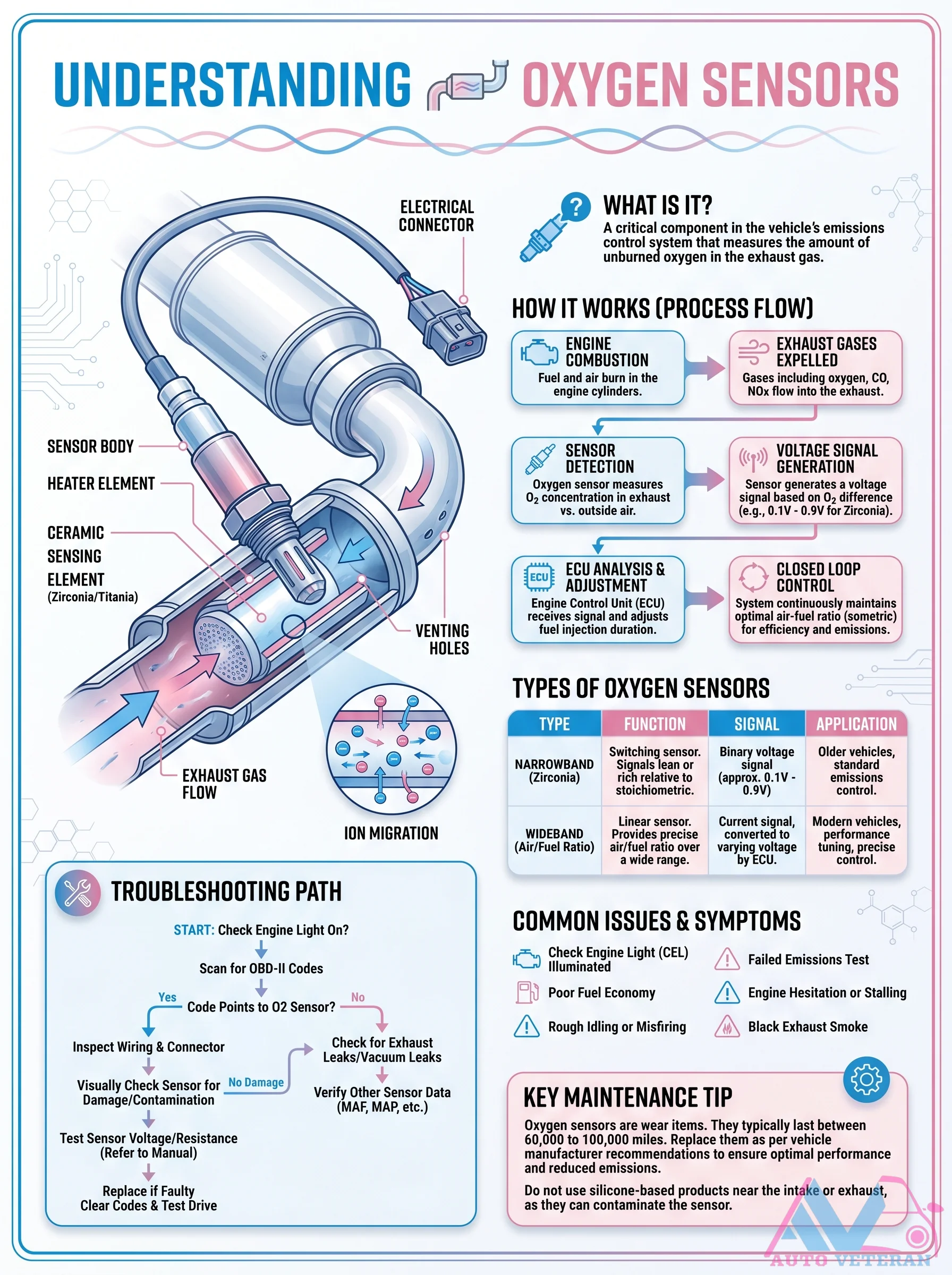

This guide covers the narrowband zirconia oxygen sensor; showing its electrical connector, signal wire (0.1V lean to 0.9V rich), heater element, and ceramic sensing element. It details how the sensor generates voltage based on oxygen concentration difference between exhaust and outside air; and emphasizes the importance of proper wiring inspection for resolving Check Engine Light issues and poor fuel economy.
