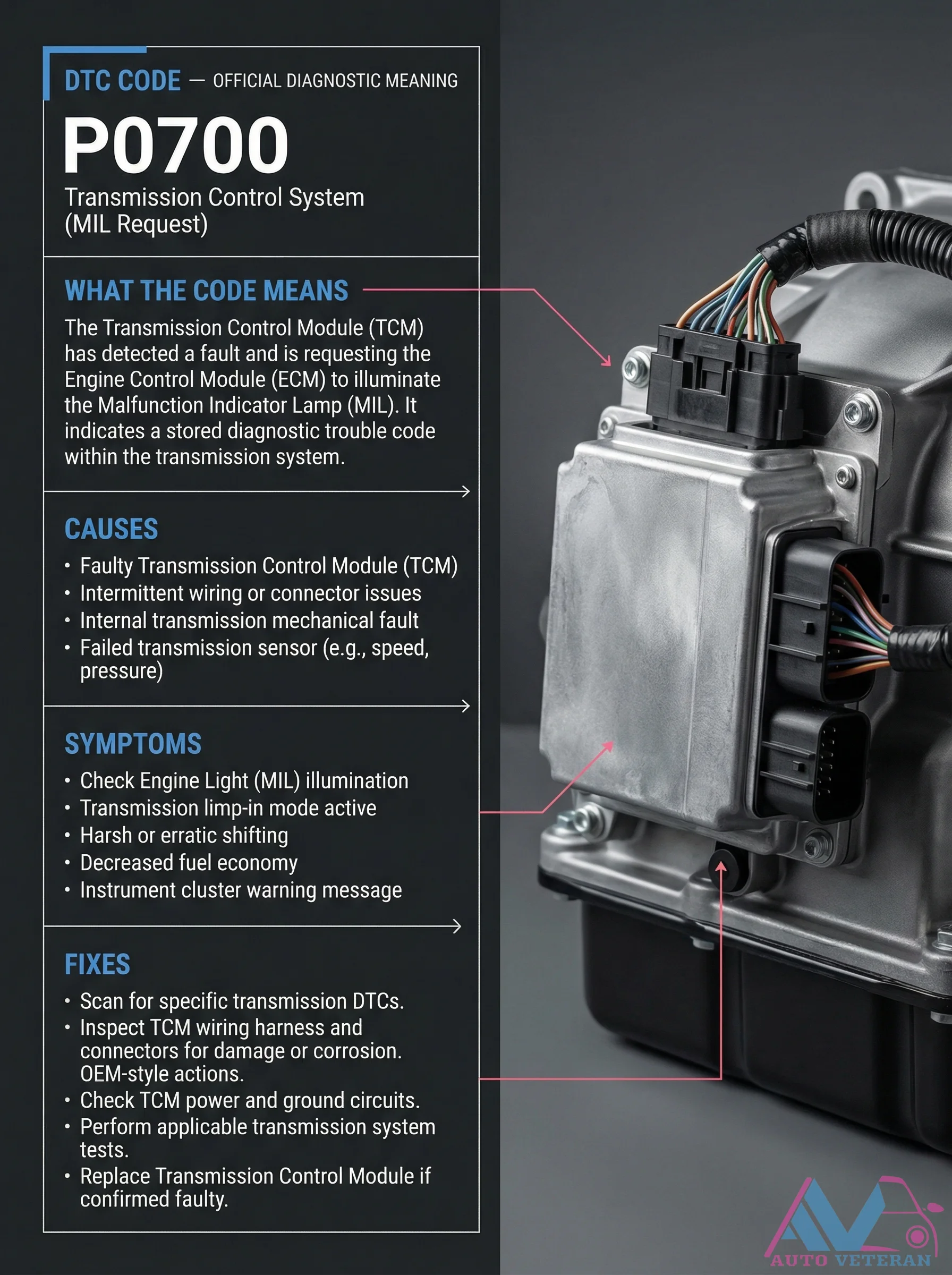

DTC P0700 Transmission Control System Fault
Diagnostic Trouble Code P0700 signals that the Transmission Control Module has detected an internal fault and is requesting the Engine Control Module to illuminate the Malfunction Indicator Lamp. This code indicates stored trouble codes within the transmission system, with common causes including a faulty TCM, intermittent wiring or connector issues, internal mechanical faults, or failed transmission sensors. Symptoms typically involve Check Engine Light illumination, transmission limp mode activation, harsh or erratic shifting, decreased fuel economy, and instrument cluster warning messages. Proper diagnosis requires scanning for specific transmission DTCs, inspecting TCM wiring harnesses and connectors for damage or corrosion, checking TCM power and ground circuits, performing transmission system tests, and replacing the Transmission Control Module if confirmed faulty.

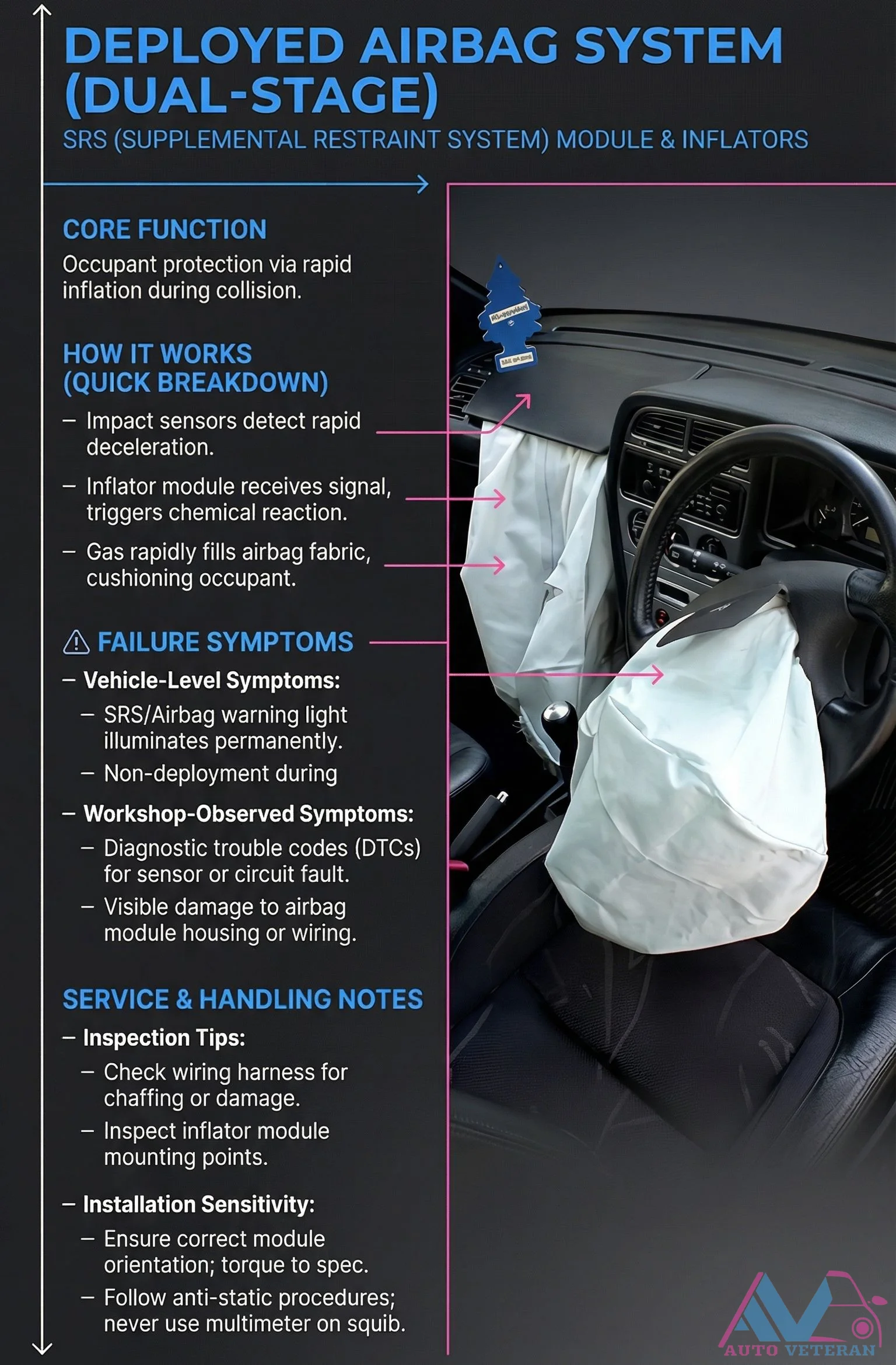

Dual-Stage Airbag System Failure Symptoms and Inspection
A dual-stage Supplemental Restraint System provides occupant protection through rapid inflation during collisions, with impact sensors detecting deceleration to trigger a chemical reaction that fills the airbag fabric. When this system fails, the SRS warning light illuminates permanently, diagnostic trouble codes appear for sensor or circuit faults, and visible damage may be present on the module housing or wiring. Proper inspection requires checking the wiring harness for chaffing, examining inflator module mounting points, ensuring correct orientation during installation, and following anti-static procedures without using a multimeter on the squib.
