The ABS is a critical safety feature that prevents the wheels from locking up during sudden or hard braking. It uses sensors and electronic control to modulate brake pressure, helping the driver maintain steering control. ABS greatly reduces the risk of skidding, especially on wet or slippery roads.

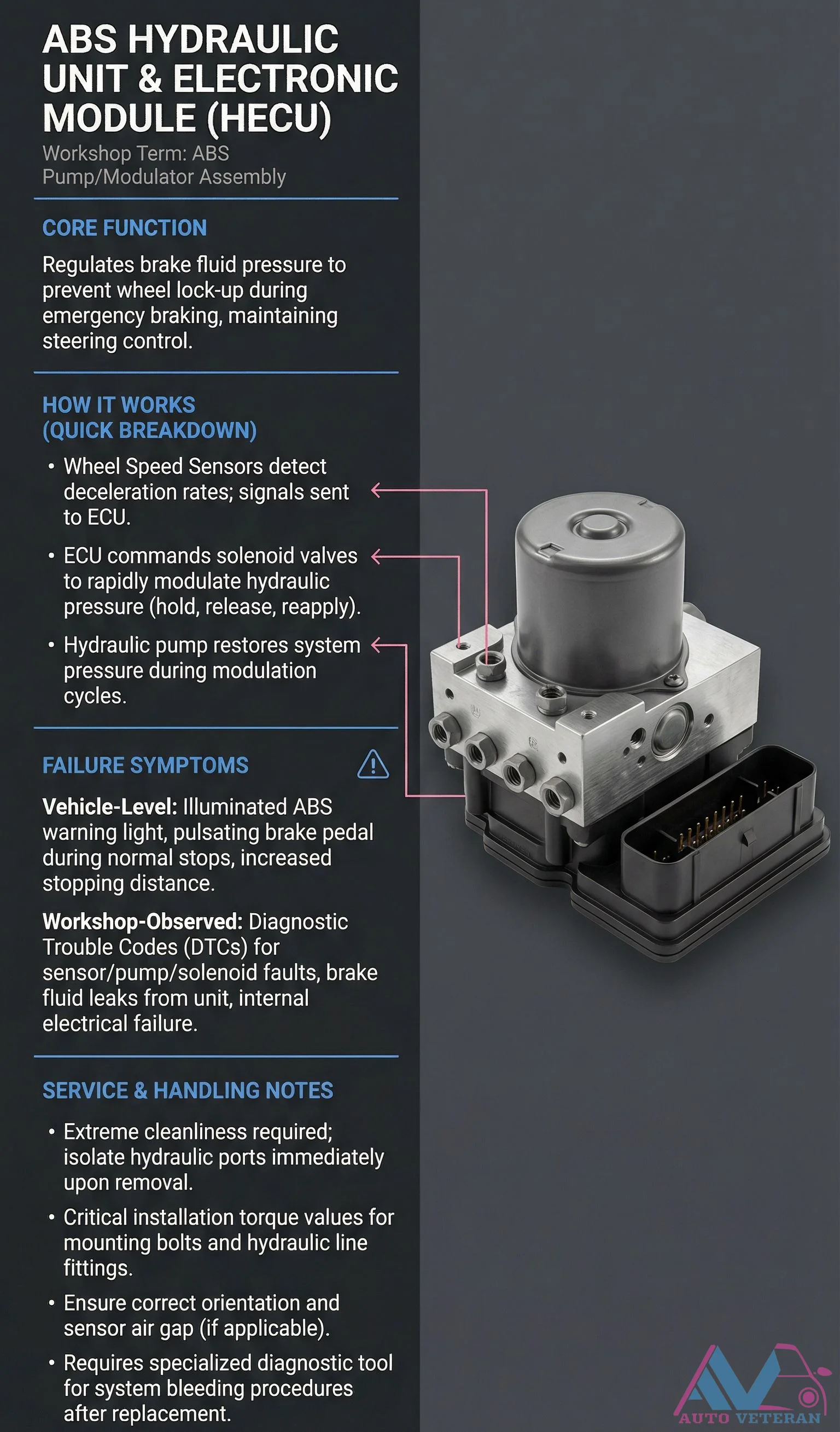

The ABS Hydraulic Unit and Electronic Module, known as the HECU or ABS pump modulator assembly, serves as the core regulator of brake fluid pressure to prevent wheel lock up during emergency braking while maintaining steering control. It operates through wheel speed sensors detecting deceleration rates and sending signals to the ECU, which then commands solenoid valves to rapidly modulate hydraulic pressure through hold, release, and reapply cycles. A hydraulic pump restores system pressure during these modulation cycles. Failure symptoms include an illuminated ABS warning light, pulsating brake pedal during normal stops, increased stopping distance, and diagnostic trouble codes for sensor, pump, or solenoid faults. Service requires extreme cleanliness, immediate isolation of hydraulic ports upon removal, adherence to critical torque values for mounting bolts and hydraulic line fittings, correct orientation and sensor air gap, and specialized diagnostic tools for system bleeding procedures after replacement.

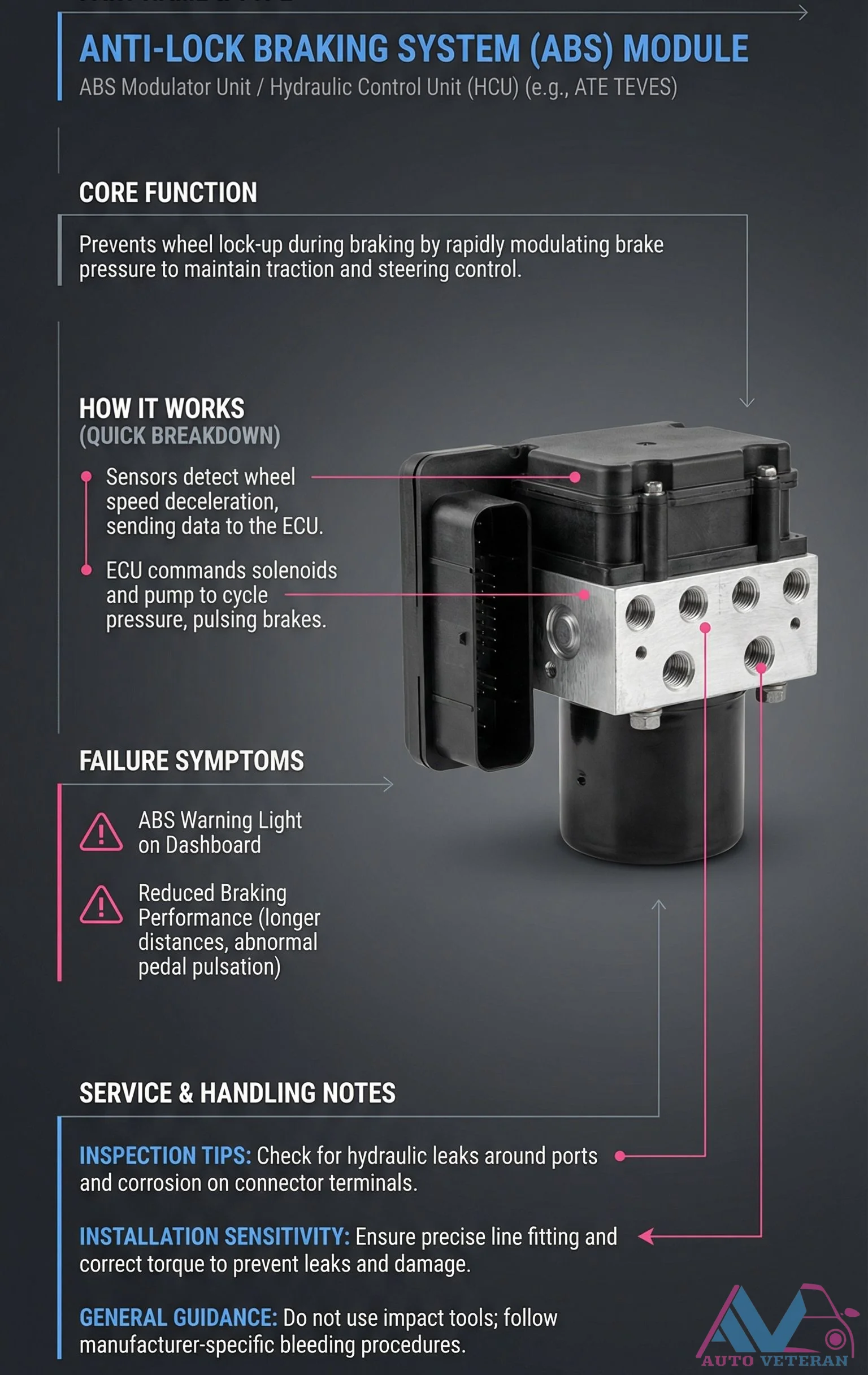

The Anti-lock Braking System module, also known as the Hydraulic Control Unit or ABS modulator, serves the critical function of preventing wheel lock-up during braking by rapidly modulating brake pressure to maintain traction and steering control. This system operates through wheel speed sensors that detect deceleration, sending data to the ECU which then commands solenoids and pumps to cycle pressure, creating the characteristic brake pulsing. When this system fails, drivers typically experience the ABS warning light illuminating on the dashboard, reduced braking performance with longer stopping distances, and abnormal pedal pulsation. Proper service requires careful inspection for hydraulic leaks around ports and corrosion on connector terminals, precise line fitting with correct torque specifications to prevent leaks, avoidance of impact tools during installation, and adherence to manufacturer specific bleeding procedures.
When the ABS warning light illuminates on your dashboard, it signals a fault within the Anti-lock Braking System that disables its wheel-lock prevention during hard braking. Common activation causes include a faulty wheel speed sensor, low brake fluid level, damaged ABS module, or blown fuse and wiring issues. Ignoring this warning leads to loss of anti-lock braking capabilities, increased skidding risk during emergency stops, longer stopping distances, and compromised vehicle stability control. The recommended driver response involves driving cautiously while avoiding hard braking, checking brake fluid levels when safe, scheduling a professional diagnostic scan, and consulting the vehicle's owner's manual for specific guidance.

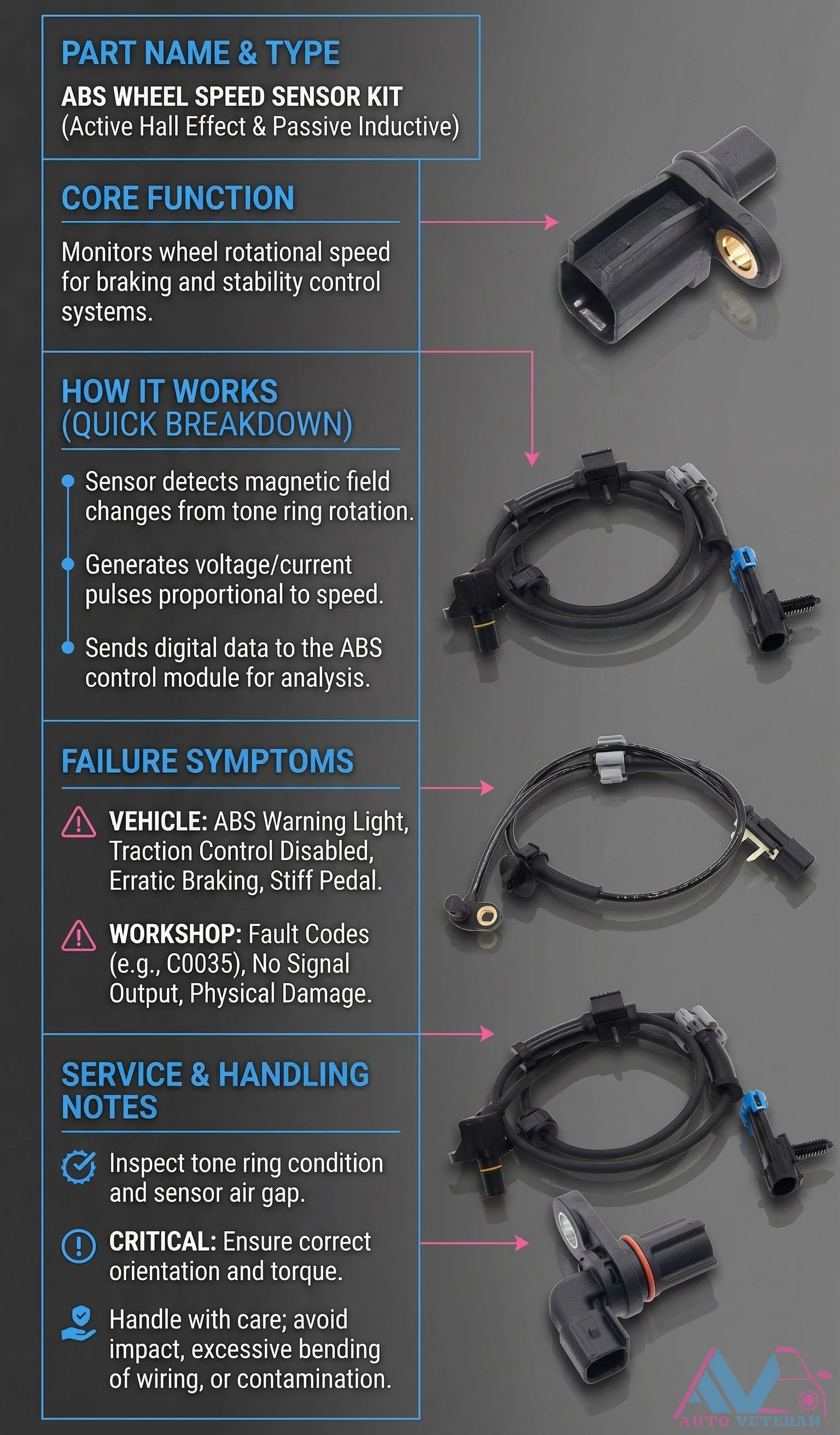

When an ABS wheel speed sensor fails, whether it's an active Hall effect or passive inductive type, your vehicle's braking and stability control systems lose critical data. The ABS warning light illuminates, traction control becomes disabled, and braking may feel erratic or produce a stiff pedal. In the workshop, technicians diagnose these issues by checking for fault codes like C0035, verifying signal output, and inspecting for physical damage. Proper service requires examining the tone ring condition, maintaining correct sensor air gap, ensuring proper orientation and torque during installation, and handling the sensor carefully to avoid impact, excessive wiring bending, or contamination.
A hydraulic device in the suspension system that dampens oscillations and controls the up-and-down movement of the wheels over road irregularities. Shocks contain hydraulic fluid and use valves and pistons to convert kinetic energy from wheel movement into heat energy, providing a smoother ride and maintaining tire contact with the road.
The foot-operated pedal that controls the engine's throttle, regulating the amount of fuel and air mixture entering the engine. Pressing the accelerator increases engine speed and power output, making the vehicle move faster. In electronic throttle systems, the pedal sends signals to the engine control unit rather than operating a mechanical linkage.
The fundamental physics of flight relies on the precise balance of four key forces: lift generated by wings counteracts weight from gravity, while thrust from engines overcomes drag from air resistance. Bernoulli's principle explains how faster airflow over a wing's curved upper surface creates lower pressure, producing upward lift. Simultaneously, Newton's third law contributes as wings deflect air downward, creating an equal and opposite reaction that further enhances lift. During steady flight, these forces achieve equilibrium with lift matching weight and thrust equaling drag, allowing for constant velocity. When thrust increases beyond drag, the resulting net force accelerates the aircraft, enabling climbs and maneuvers.
Located in the engine intake system, the air filter cleans the air before it enters the engine for combustion. It traps dust, dirt, and debris to protect the engine's internal parts. A clean air filter ensures better fuel efficiency, improved engine performance, and reduced harmful emissions.

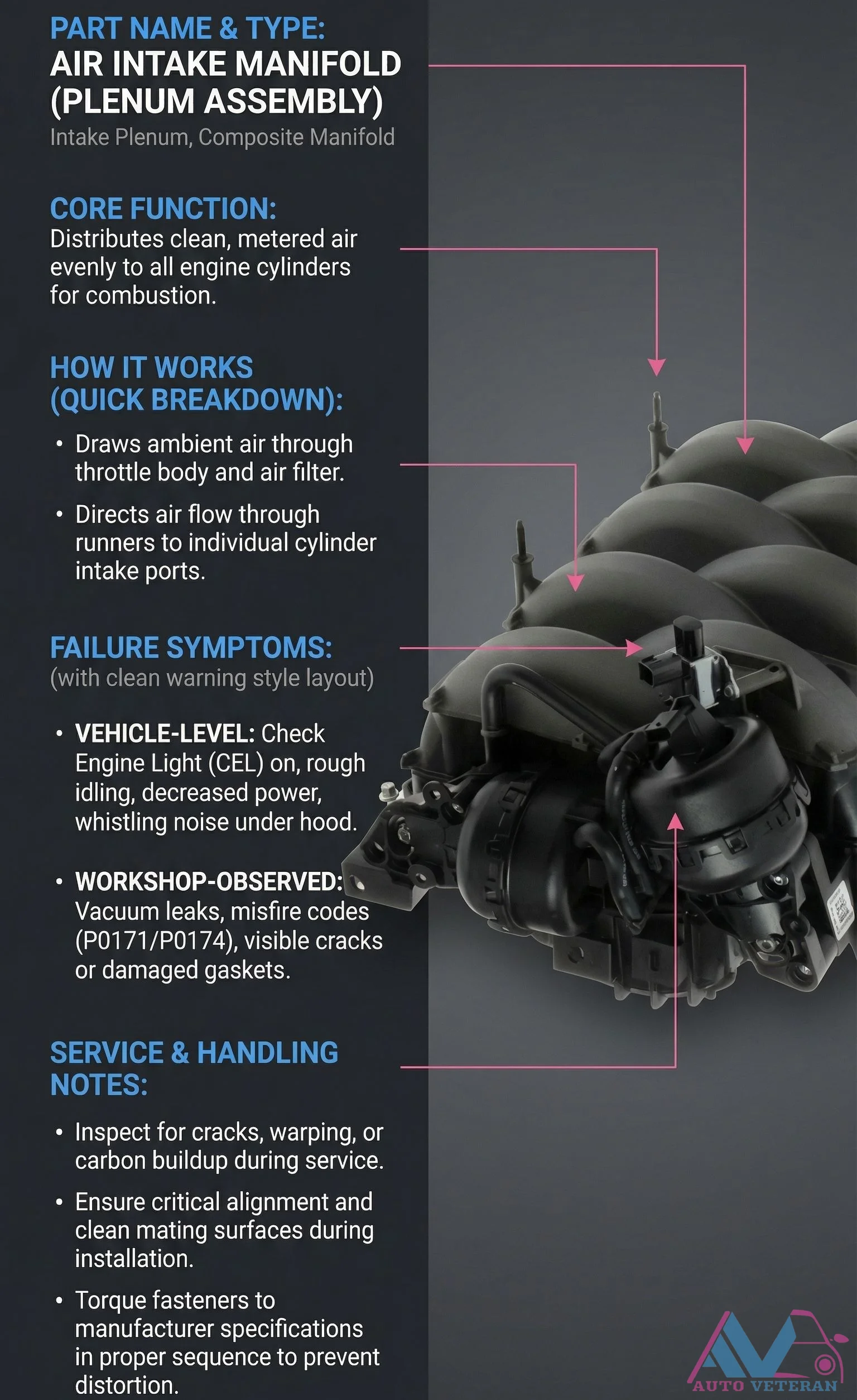

The composite plenum assembly distributes clean, metered air evenly to all engine cylinders for combustion. When this critical component fails, vehicle level symptoms include a check engine light illumination, rough idle with decreased power, and whistling noises under the hood. Workshop diagnostics reveal vacuum leaks, misfire codes like P0171 and P0174, and visible cracks or damaged gaskets. Proper service requires inspection for cracks, warping, and carbon buildup during maintenance. Critical alignment and clean surfaces are essential during installation, with fasteners torqued to manufacturer specifications in the proper sequence to prevent distortion.
The network of components that delivers filtered air to the engine for combustion, including the air filter, intake manifold, throttle body, and connecting ducts. The system must provide adequate airflow while filtering contaminants. Performance modifications often focus on improving airflow through this system to increase engine power.

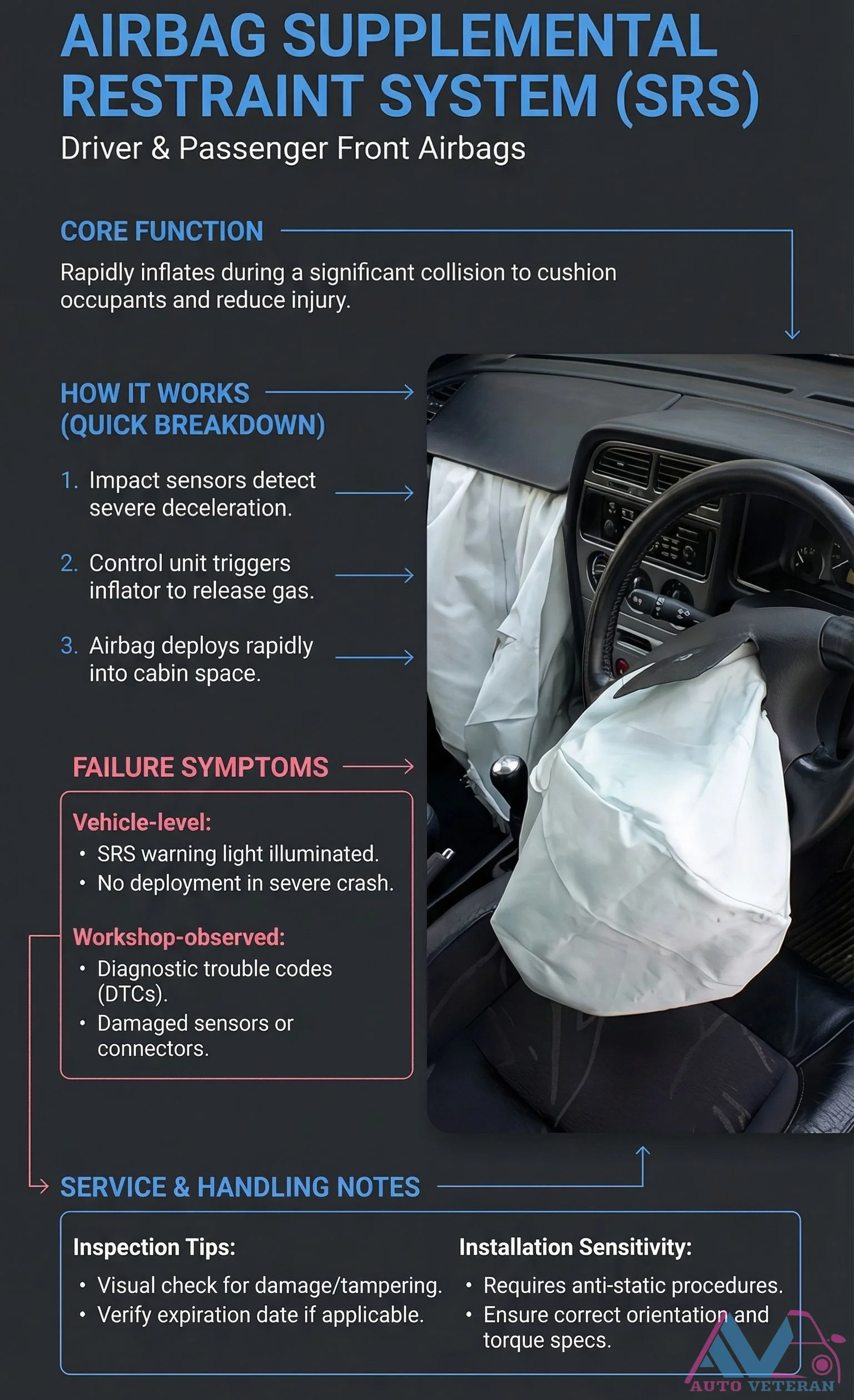

When the Supplemental Restraint System malfunctions, the SRS warning light illuminates on your dashboard, signaling potential non deployment during a severe collision. Diagnostic trouble codes reveal issues with damaged sensors or connectors, while proper inspection requires visual checks for tampering, adherence to anti static procedures, verification of expiration dates, and correct orientation with specified torque settings.
A passive safety system consisting of inflatable cushions designed to protect occupants during collisions. Modern vehicles typically have multiple airbags including front, side, curtain, and knee airbags. The system uses crash sensors to detect impacts and rapidly inflate the bags using a chemical reaction, then quickly deflate to cushion occupants and reduce injury.
Understanding the four fundamental forces of flight is essential for aviation mechanics and enthusiasts. Thrust is generated when an engine compresses incoming air, mixes it with fuel, ignites the mixture, and expels it rearward to propel the aircraft forward. Lift occurs as the wing's shape causes air to flow faster over the top surface, creating lower pressure above and higher pressure below, pushing the wing upward. In steady flight, lift must balance weight, and thrust must overcome drag. Pilots use control surfaces like elevators for pitch, rudders for yaw, and ailerons for roll to adjust the aircraft's attitude and direction. Sustained flight requires continuous thrust management and control surface adjustments to maintain lift and balance, enabling stable soaring through the sky.
Understanding the fundamental mechanics of flight involves four key principles: generating lift through wings using Bernoulli's Principle and the Coanda Effect, where faster airflow over curved surfaces creates lower pressure and upward force; creating thrust with jet or propeller engines to overcome drag and propel forward; balancing forces in flight where lift opposes weight and thrust opposes drag for level flight; and achieving control through surfaces like ailerons, elevator, and rudder to manage pitch, roll, and yaw by changing airflow and direction.
Understanding how aircraft generate lift involves two key aerodynamic principles working together. Bernoulli's principle explains how faster airflow over the curved upper wing surface creates lower pressure compared to the slower air underneath, producing upward force. The Coanda effect describes how airflow follows the wing's contour, enhancing this pressure differential. Tilting the wing at an angle of attack increases lift by altering airflow patterns, though excessive angles lead to aerodynamic stall where lift suddenly decreases. These forces must overcome the aircraft's weight for climbing, while thrust from engines counteracts drag resistance. Control surfaces like ailerons, elevators, and rudders manipulate airflow to manage roll, pitch, and yaw during flight.
Understanding the fundamental forces and control systems that enable airplanes to fly is essential for aviation enthusiasts and pilots alike. The principles of lift generation through airfoil design and Bernoulli's principle create the upward force needed for flight, while thrust from jet engines using the Brayton cycle provides forward momentum. Control surfaces like elevators, rudders, and ailerons manipulate airflow to manage pitch, yaw, and roll, ensuring stable flight. Practical considerations include monitoring key parameters such as EGT and EPR, recognizing stall symptoms like buffeting and nose drop, and maintaining proper weight balance for optimal stability during all flight regimes from climb to cruise.
Understanding how airplanes defy gravity requires mastering the four fundamental forces of flight: lift generated by wings through airfoil design and angle of attack, thrust created by jet engines via Newton's third law, drag as air resistance, and weight from gravity. The system breakdown reveals how steady flight occurs when lift equals weight and thrust equals drag, while climbing or accelerating requires unbalanced forces. Key components include wings generating lift through pressure differentials, jet engines producing thrust via intake, compression, combustion, and exhaust, and control surfaces like ailerons for roll, elevators for pitch, and rudder for yaw. The takeoff sequence progresses from idle thrust through rotation to climb out, with critical attention to angle of attack to prevent stalls where airflow breaks into turbulence and lift disappears abruptly.
The adjustment of a vehicle's suspension system to ensure that all wheels are positioned correctly relative to each other and the road surface. Proper alignment involves setting the correct angles for camber (wheel tilt), caster (steering axis angle), and toe (wheel direction). Poor alignment causes uneven tire wear, steering problems, and reduced fuel economy.
A drivetrain system that automatically distributes engine power to all four wheels as needed, providing improved traction and handling in various road conditions. Unlike 4WD systems, AWD operates continuously without driver input and typically uses a center differential to allow for speed differences between front and rear wheels during normal driving.
